GN 411.2 Centering Bore Clamps

Centering Bore Clamps GN 411.2 thumbnail

Type

K	with clamping balls
S	with clamping segments

Show filter

d₁	d₂ Clamping-Ø	d₃	d₄	d₅	d₆	h₁	h₂	k ±0,1	l₁	l₂	l₃	t min.	w₁	w₂	Number of clamping elements	Clamping force in kN

11,7*	14,2	-	M 4	4,3	1,5	-	2,5	3,5	3,9	8,6	6,3	-	0,7	1,3	3	0,5
14,5	18,5	12	M 4	4,3	2	5,5	3,5	4,5	9,8	14,2	5	6	1,2	2,3	3	3,5
18,5	22,5	15	M 5	5,3	2,5	7,5	3	5,5	11,5	16,5	6,2	7	1,2	2,3	3	4
22,5	26,5	20	M 6	6,4	3	6	4	7	14,1	19,6	9	8	1,2	2,3	3	4,5
26,5	30,5	20	M 6	6,4	3	6	4,5	7	14,1	19,8	9	8	1,2	2,3	3	4,5
30,5	38,5	25	M 6	6,4	4	7	4,5	9	14,1	23,2	9	8	2,3	4,6	3	4,5
38,5	46,5	30	M 8	8,4	4	7,5	4,5	11	18	27,2	12	10	2,3	4,6	6	6,5
46,5	54,5	30	M 8	8,4	4	7,5	4,5	11	18	27,1	12	10	2,3	4,6	6	6,5
54,5	70,5	45	M 10	10,5	5	9	5,5	15	23,7	40,6	14	12	4,7	9,2	6	8
70,5	86,5	60	M 12	13	5	10	5,5	17	28,3	46,1	17	15	4,7	9,2	6	10
86,5	102,5	60	M 16	17	5	10	5,5	25	30,3	51,2	21	15	4,7	9,2	6	12,5

Filter combination produces no result.

* This size is only available as type K.

Specification

Steel

Hardened
Blackened

Clamping balls / segments

Hardened
Plain, tumbled

ISO Fundamental Tolerances

RoHS

On request

Centring bore clamps GN 411.3
operable from the opposite side respectively for hydraulic or pneumatic operation

Centring bore clamps with 2 clamping elements for clamping tubes

Information

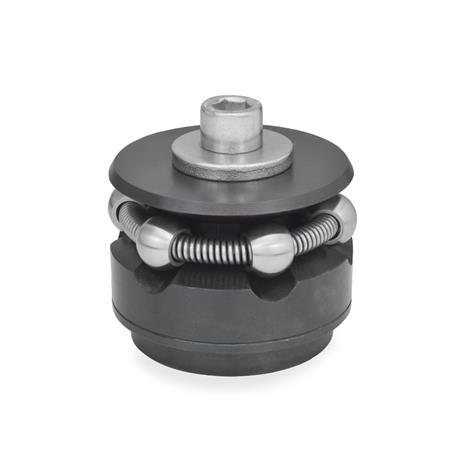

With centering bore clamps GN 411.2 workpieces can be centrally positioned and clamped from the inside of the bore.

They offer the following advantages:

- Precise self centering
- Repetitive accuracy: ± 0,025
- Accuracy of concentricity: ± 0,05
- Solid and stable clamping through either 3 or 6 contact points on the workpiece
- Clamping of workpieces with uneven or irregular surface (such as castings) with type K
- Distortion free clamping
- Reduced height
- Can be fitted in any position
- Large adjustable range
- Draw-down clamping
