Threaded Stud Steel

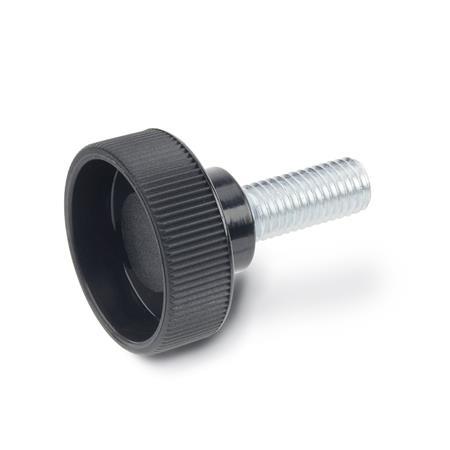

GN 421 Knurled Screws, Plastic
| d1 | Lengthll | d2 | d3 | d4 | h | k | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| M 4 | 10 | 15 | 20 | 30 | - | 9 | 12 | 19 | 14 | 8 |
| M 5 | 10 | 15 | 20 | 25 | - | 9 | 12 | 19 | 14 | 8 |
| M 6 | 10 | 16 | 20 | 25 | 30 | 12 | 14 | 24 | 16,5 | 9,5 |
| M 8 | 16 | 20 | 25 | 30 | 40 | 14 | 16 | 30 | 19,5 | 11 |
| M 10 | 20 | 25 | 30 | 40 | - | 16 | 18 | 36 | 22,5 | 12,5 |
Filter combination produces no result.
Specification
Plastic
Black, shiny finish
Threaded stud
Steel zinc plated, blue passivated
RoHS
Black, shiny finish
Threaded stud
Steel zinc plated, blue passivated
RoHS
Information
| How to order |
| ||||
GN 421-M6-25 |
