for Position Indicators, Steel

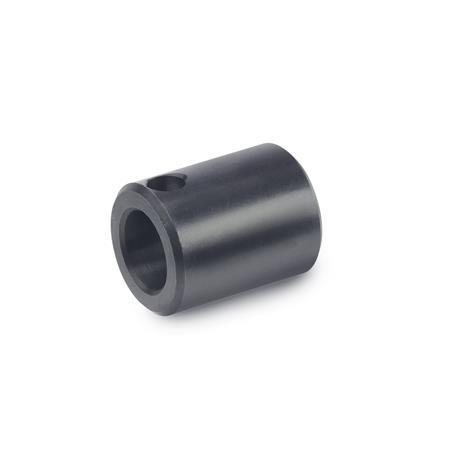

GN 952.1 Adapter Bushings
ELESA original design RB51/RB52
| d1f7 | d2H7 Bore | l1 | d3 | l2 | for Position indicators | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | B 6 | B 8 | - | - | - | - | - | 20 | 3,2 | 2,5 | GN 955 |
| 14 | B 6 | B 8 | B 10 | B 12 | - | - | - | 20 | 4,25 | 3,5 | GN 954 / GN 9054 |
| 20 | B 6 | B 8 | B 10 | B 12 | B 14 | B 15 | B 16 | 20 | 5,5 | 4,5 | GN 953 / GN 9053 / GN 9153 |
Filter combination produces no result.
Specification
Information
With the help of adapter bushings GN 952.1 position indicators can be adapted to accept different smaller spindle diameters.
The adapter bushings are supplied with a set screw.
| How to order |
| ||||||
GN 952.1-14-B12-20 |
