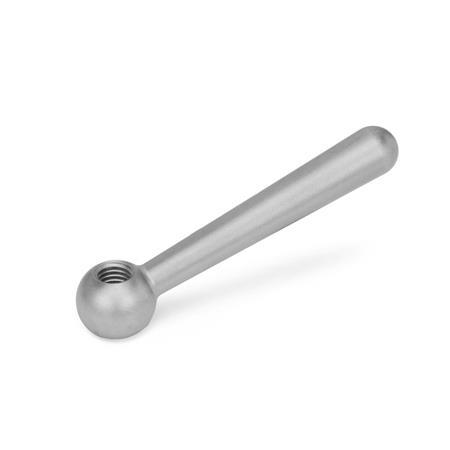

DIN 99 Stainless Steel Clamping Levers, matte shot blasted
Type
| N | Angled lever with threaded bore |
| L | Angled lever with plain bore, Tol. H7 |
| l1 | d1 Thread | d2 H7 Bore | b | d3 | d4 ≈ | d5 -0,2 | h ≈ | l2 ≈ |
|---|---|---|---|---|---|---|---|---|
| 50 | M 6 | - | 9,5 | 8 | 7,5 | 12 | 24 | 48 |
| 63 | M 8 | B 8 | 12 | 10 | 11 | 16 | 30,5 | 60 |
| 80 | M 10 | B 10 | 14,5 | 13 | 15 | 20 | 38 | 76 |
| 100 | M 12 | B 12 | 18,5 | 16 | 19 | 25 | 47 | 95 |
| 125 | M 16 | - | 24 | 20 | 23,5 | 32 | 59,5 | 119 |
Filter combination produces no result.
Specification
Stainless steelNI
RoHS
- AISI 303
- Matte shot blasted
RoHS
On request
Stainless steel clamping lever with straight lever
Information
| How to order |
| ||||||||
DIN 99-63-M8-N-NI |
