with Loss Protection

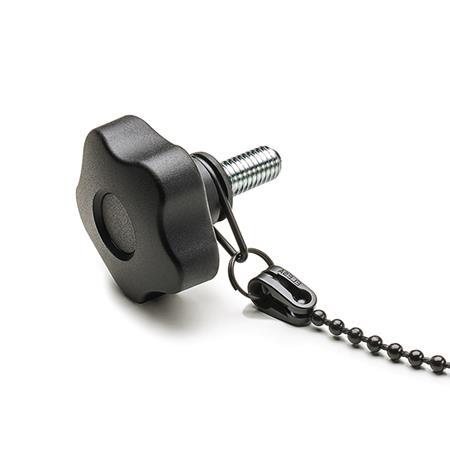

GN 5337.13 Star Knobs with Threaded Stud, plastic, threaded stud steel, zinc plated
ELESA Original design VCT-p-LP
Loss protection
| P | With plastic ball chain |
| d1 | d2 | Length l | d3 | h1 | h2 | h3 | r | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | M 5 | 10 | 16 | 20 | 25 | 13 | 19 | 8 | 2,75 | 20 |
| 32 | M 6 | 16 | 20 | 25 | 30 | 15 | 23 | 10 | 2,75 | 21 |
| 40 | M 8 | 20 | 25 | 30 | 40 | 17 | 27 | 12 | 2,75 | 21,5 |
| 50 | M 10 | 20 | 25 | 30 | 40 | 19 | 32 | 14 | 2,75 | 22,5 |
| 63 | M 12 | 30 | 40 | 50 | - | 22 | 37 | 16 | 2,75 | 24 |
Filter combination produces no result.
Specification
Plastic
Technoplymer (Polypropylen PP)
Threaded stud
Steel zinc plated, blue passivated
Retaining ring / Ball chain
Technoplymer (Polyacetal POM)
Key ring
Stainless steel
Blackened
RoHS
Technoplymer (Polypropylen PP)
- Reinforced, shock resistant
- Temperature resistant up to 60 °C
- Black, matte finish
Threaded stud
Steel zinc plated, blue passivated
Retaining ring / Ball chain
Technoplymer (Polyacetal POM)
Key ring
Stainless steel
Blackened
RoHS
On request
Plastic ball chains with other lengths
Information
Star knobs with threaded stud GN 5337.13 can be captively attached to a base element with the help of a ball chain.
The star knobs with threaded stud are supplied ready assembled (with a plastic ball chain).
see also...
| How to order |
| ||||||||
GN 5337.13-40-M10-30-P |
