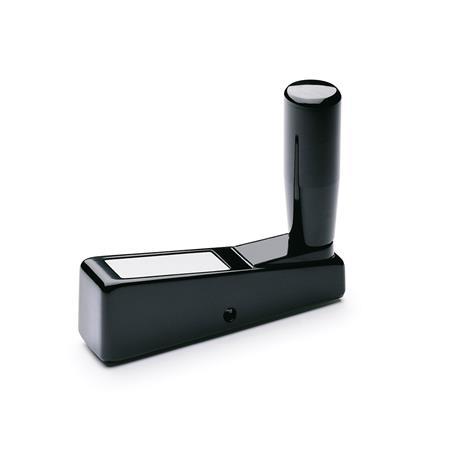

GN 510 Cranked Handles
ELESA original design ME.

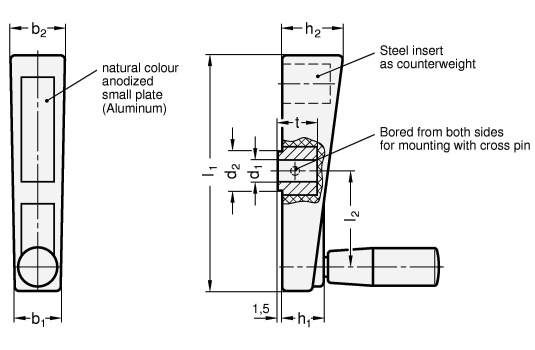

| l1 | d1 H7 Bore | d2 | b1 | b2 | h1 | h2 | h3 ≈ | l2 | t min. | Ø Handle |
|---|---|---|---|---|---|---|---|---|---|---|
| 65 | B 8 | 13 | 19 | 22 | 18 | 23 | 40 | 23 | 13 | 18 |
| 80 | B 10 | 14 | 20 | 24 | 20 | 26 | 40 | 30 | 16 | 18 |
| 95 | B 10 | 14 | 22 | 26 | 22 | 29 | 50 | 36 | 19 | 21 |
| 110 | B 12 | 18 | 22 | 28 | 24 | 34 | 65 | 44 | 18 | 23 |
| 140 | B 12 | 18 | 24 | 30 | 26 | 37 | 80 | 57 | 18 | 26 |
Filter combination produces no result.
Specification
Body
Plastic
Duroplast (PF)
Hub bushing
Steel, blackened
Threaded bushing to accept the revolving handle
Brass
Revolving handles GN 598
RoHS
Plastic
Duroplast (PF)
- Reinforced
- Temperature resistant up to 110 °C
- Black, shiny finish
Hub bushing
Steel, blackened
Threaded bushing to accept the revolving handle
Brass
Revolving handles GN 598
- Plastic, Duroplast
Black, shiny finish - Spindle steel
Zinc plated, blue passivated
RoHS
Information
Cranked handles GN 510 allow fine adjustment.
These cranked handles are fitted to shaft with a cross pin. To simplify the installation there is a centred drilling on both sides.
| How to order |
| ||||
GN 510-80-B10 |
