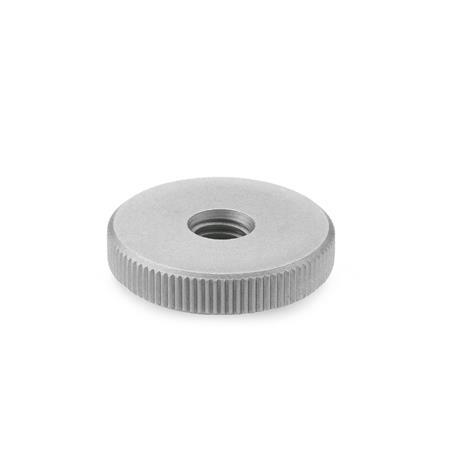

DIN 467 Stainless Steel Flat Knurled Nuts, matt shot-blasted
| d1 | d2 | d3 | h | k |
|---|---|---|---|---|
| M 3 | 12 | 6 | 3 | 2,5 |
| M 4 | 16 | 8 | 4 | 3,5 |
| M 5 | 20 | 10 | 5 | 4 |
| M 6 | 24 | 12 | 6 | 5 |
| M 8 | 30 | 16 | 8 | 6 |
| M 10 | 36 | 20 | 10 | 8 |
| M 12 | 40 | 22 | 12 | 10 |
Filter combination produces no result.
Specification
Information
Stainless steel flat knurled nuts DIN 467 are suitable for universal use and can be tightened and loosened easily without tools. A nut with thread M12 is also available in addition to the types defined in the DIN standard.
| How to order |
| ||||
DIN 467-M8-NI |
RoHS compliant:
-
-
Weight:
-
-
