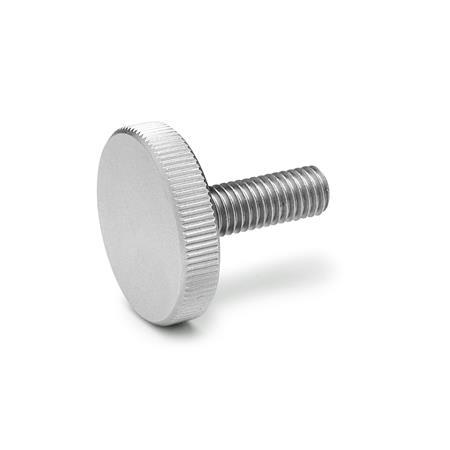

DIN 653 Stainless Steel Flat Knurled Screws, matt shot-blasted
| d1 | Length l | d2 | k | |||||
|---|---|---|---|---|---|---|---|---|
| M 3 | 6 | 8 | 10 | 16 | 20 | - | 12 | 2,5 |
| M 4 | 8 | 10 | 12 | 16 | 20 | 25 | 16 | 3,5 |
| M 5 | 10 | 12 | 16 | 20 | 25 | 30 | 20 | 4 |
| M 6 | 12 | 16 | 20 | 25 | 30 | 40 | 24 | 5 |
| M 8 | 16 | 20 | 25 | 30 | 35 | 40 | 30 | 6 |
| M 10 | 20 | 25 | 30 | 35 | 40 | - | 36 | 8 |
Filter combination produces no result.
Specification
Information
Stainless steel flat knurled screws DIN 653 are turned entirely from a single piece. The thread of the screw generally extends up to the head and ends in a runout without recess as per the DIN designation A.
They are suitable for universal use and can be quickly tightened and loosened without tools.
| How to order |
| ||||||
DIN 653-M6-20-NI |
