Brass / Plastic / Spherical Pivot

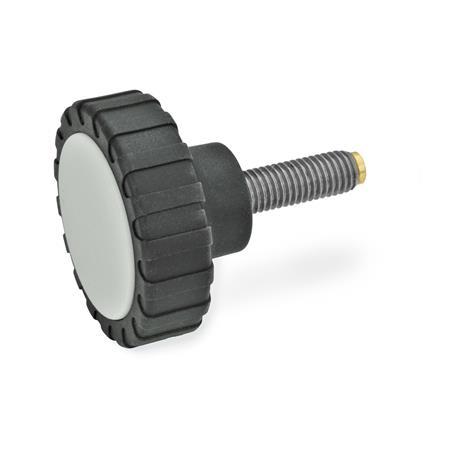

GN 7336.5 Knurled Screws , threaded stud Stainless Steel
Type
| MS | Brass pivot |
| KU | Plastic pivot (Polyacetal POM) |
| ZK | Spherical pivot |

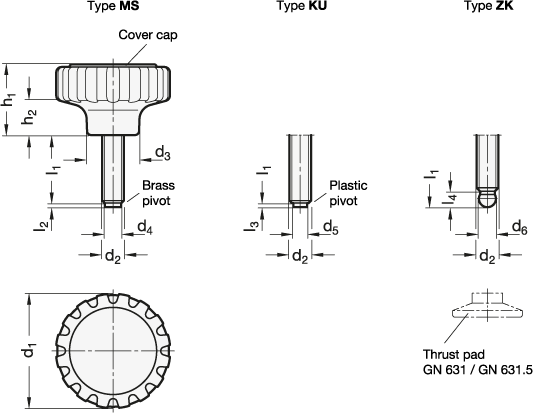

| d1 | d2 | l1 | d3 | d4 | d5 | d6 +0,05 | h1 | h2 | l2 | l3 | l4 ≈ | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 34 | M 6 | 15 | 20 | 25 | 30 | 16 | 4 | 3,5 | 4,5 | 21 | 10,5 | 1 | 1,3 | 5,1 |
| 42 | M 8 | 20 | 25 | 30 | 40 | 19 | 6 | 5 | 6,1 | 26 | 13 | 1,5 | 1,6 | 6,2 |
| 53 | M 10 | 25 | 30 | 40 | 50 | 24 | 8 | 6,5 | 7,8 | 32 | 16 | 2 | 1,9 | 7,3 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Threaded stud
Stainless steel AISI 304
Cover cap
Plastic
Light gray, matte finish
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- Black, matte finish
Threaded stud
Stainless steel AISI 304
Cover cap
Plastic
Light gray, matte finish
RoHS
Information
Knurled screws GN 7336.5, type MS/KU with brass or plastic pivots are used when pressure dents or damage must be avoided.
Knurled screws GN 7336.5, type ZK feature a spherical pivot whose Ø d6 is smaller than the core Ø of the thread. The version with spherical pivot is suitable for holding GN 631 / GN 631.5 thrust pads, which must be ordered separately.
The knurled screws GN 7336.5 distinguish an attractive design in combination with closed shape (no recess on the underside of the handles).
| How to order |
| ||||||||
GN 7336.5-42-M8-25-MS |
