Bushing Stainless Steel

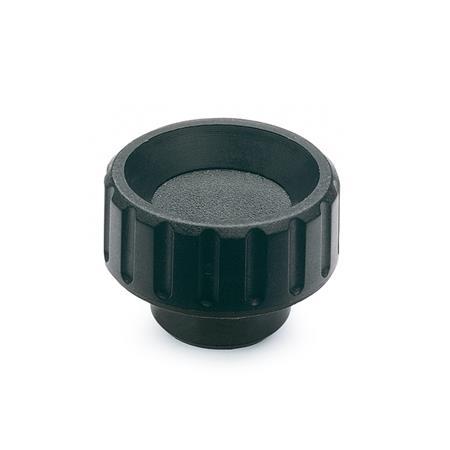

GN 590.5 Knurled Nuts
ELESA Original design BT-SST/SST-FP
Type
| D | With threaded through bore |
| E | With threaded blind bore |
| d1 | d2 Type D | d3 Type E | d4 | h | k | {t1 min. | t2 |
|---|---|---|---|---|---|---|---|
| 20 | M 5 | M 5 | 11,5 | 16 | 10 | 5 | 12 |
| 25 | M 6 | M 6 | 16 | 19 | 11 | 8 | 14 |
| 32 | M 8 | M 8 | 17 | 22 | 13 | 10 | 16 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Bushing
Stainless steel AISI 303
RoHS
Technopolymer (Polyamide PA)
- Reinforced
- Temperature resistant up to 130 °C
- Black, matte finish
Bushing
Stainless steel AISI 303
RoHS
Information
| How to order |
| ||||||
GN 590.5-32-M8-E |
