for Control Knobs / Handheels without Position Indicator

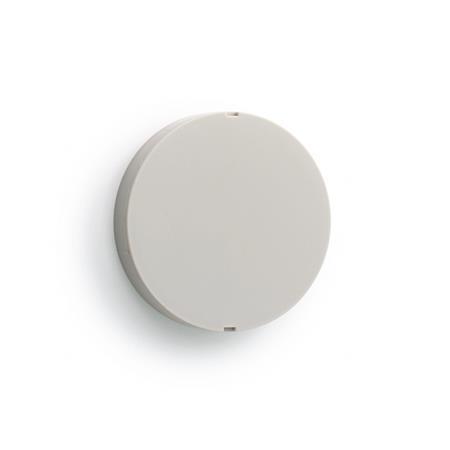

GN 576 Hub Caps, plastic, light grey
ELESA original design CP.
| d | Length l | Suitable for Hand knobs GN 534.8 / GN 534.9 Size | Handwheels GN 577.8 / GN 577.9 Size | Handwheels GN 521.8 Size |
|---|---|---|---|---|
| 50 | 11 | 60 | 85 | - |
| 69 | 14 | 80 | 110 | 125 / 200 |
Filter combination produces no result.
Specification
Information
Hub caps GN 576 are used on hand knobs GN 534.8 / GN 534.9 and handwheels GN 577.8 / GN 577.9 / GN 521.8 depending whether either of them is used together with a position indicator or without.
To mount these hub caps, simply snap them in position by hand. To remove them, simply lever them away with the help of a flat screwdriver.
| How to order |
| ||
GN 576-50 |
RoHS compliant:
-
-
Weight:
-
-
