Bushing Stainless Steel

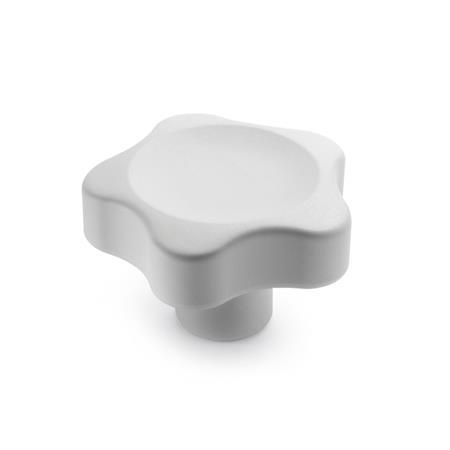

GN 5337.4 Star Knobs
ELESA original design VC.692 CLEAN
| d1 | d2 | d3 | h1 | h2 | t min. |
|---|---|---|---|---|---|
| 32 | M 6 | 14 | 22,5 | 12,5 | 10 |
| 40 | M 8 | 15 | 26 | 14 | 13 |
| 50 | M 10 | 18 | 31 | 17 | 17 |
| 60 | M 12 | 21 | 37 | 21 | 20 |
Filter combination produces no result.
Specification
Plastic
Technoplymer (Polyamide PA)
Bushing
Stainless steel AISI 303
RoHS
Technoplymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- White, RAL 9002, matte finishWS
Bushing
Stainless steel AISI 303
RoHS
Information
The underside of the knob GN 5337.4 is not recessed or hollowed. This means that if they are fitted with a stainless steel bushing they will meet the standards and requirements for hygiene applications.
| How to order |
| ||||||
GN 5337.4-50-M10-WS |
