Aluminum

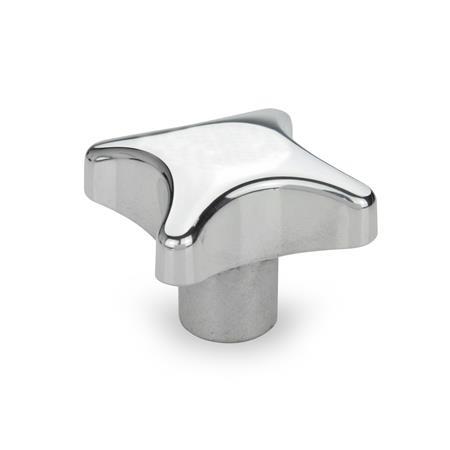

DIN 6335 Hand Knobs, matte or polished
Type
| C | With plain blind bore H7 |
| D | With threaded through bore |
| E | With threaded blind bore |
| d1 | d2 Thread Type D / Type E | d3 H7 Bore Type C | d4 | h1 | h2 | t1 min. | t2 |
|---|---|---|---|---|---|---|---|
| 40 | M 8 | B 8 | 14 | 25 | 13 | 15 | 13 |
| 50 | M 10 | B 10 | 18 | 32 | 18 | 18 | 16 |
| 63 | M 12 | B 12 | 20 | 40 | 23 | 22 | 20 |
| 80 | M 16 | B 16 | 25 | 50 | 28 | 28 | 20 |
Filter combination produces no result.
Specification
AluminumAL
Forged
RoHS
Forged
- Matte finish (tumbled)MT
Flash mark not visible - PolishedPL
RoHS
On request
Powder coated
Information
| How to order |
| ||||||||||
DIN 6335-AL-50-B10-C-MT |
