Spindle Steel, Zinc Plated

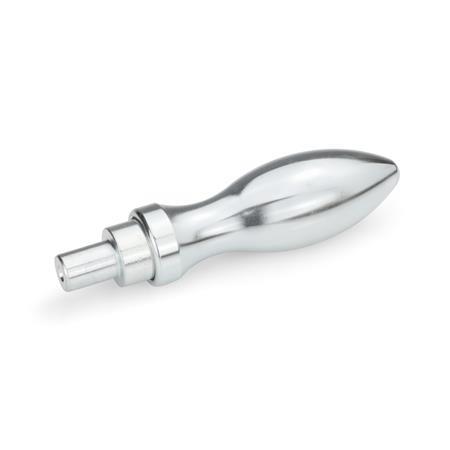

DIN 98 Revolving Handles, Steel / Aluminum / Plastic
Type
| D | With plain shaft |
| E | With threaded rod |
| d1 | d2 h8 Type D ST / AL | KT | d3 Type E ST / AL | KT | d4 h13 | l1 ≈ | l2 | l3 | A/F Internal hexagon |
|---|---|---|---|---|---|---|---|---|---|
| 16 | 7 | 7 | M 6 | M 6 | 10 | 49 | 11 | 5,5 | 3 |
| 20 | 8 | 8 | M 8 | M 8 | 13 | 61 | 13 | 6 | 4 |
| 25 | 10 | 10 | M 10 | M 10 | 16 | 75 | 14 | 8 | 5 |
| 32 | 13 | 13 | M 12 | M 12 | 20 | 95 | 21 | 10,5 | 6 |
| 36 | 16 | - | M 16 | - | 22 | 106 | 26 | 11 | 8 |
Filter combination produces no result.
Specification
SteelST
Zinc plated, blue passivated
AluminumAL
Glossy finish
PlasticKT
Technopolymer (Polyamide PA)
Spindle
Steel
Zinc plated, blue passivated
RoHS
Zinc plated, blue passivated
AluminumAL
Glossy finish
PlasticKT
Technopolymer (Polyamide PA)
- Temperature resistant up to 110 °C
- Black, matte finish
Spindle
Steel
Zinc plated, blue passivated
RoHS
Information
Revolving handles DIN 98 type D are supplied unassembled so that the shaft can be press fitted or screwed into a tapped blind bore prior to assembly.
Light taps with a soft-head hammer in the axial direction affix the handle to the axle with sufficient firmness that it is held in place axially while still remaining turnable.
| How to order |
| ||||||
DIN 98-KT-32-D |
