Retaining System, Digital / Analog Indication

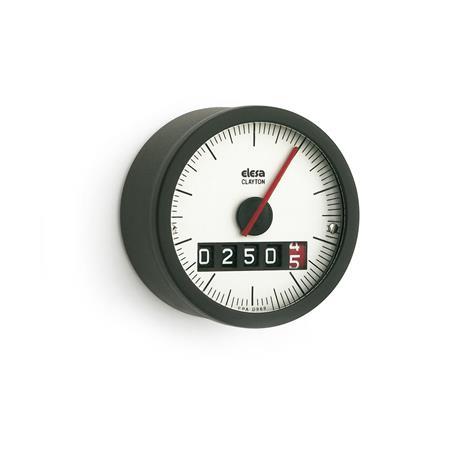

GN 000.13 Position Indicators

ELESA original design PW12 Info

Type

R	Numbers ascending clockwise
L	Numbers ascending anti-clockwise

Show filter

d₁	Counter	corresponds to thread pitch	Scale Number of graduations	Indication precision of the pointer	d₂	d₃	l₁	l₂

60	0000.2	0,2	20	0,01	68,5	67	33	26
60	0000.5	0,5	50	0,01	68,5	67	33	26
60	0001.0	1,0	100	0,01	68,5	67	33	26
60	0002.0	2,0	40	0,05	68,5	67	33	26
60	0002.5	2,5	50	0,05	68,5	67	33	26
60	0003.0	3,0	60	0,05	68,5	67	33	26
60	0004.0	4,0	80	0,05	68,5	67	33	26
60	0005.0	5,0	100	0,05	68,5	67	33	26

Filter combination produces no result.

Specification

Housing
Plastic (Polyamide PA)

Glass fiber reinforced
Black, matte finish

Sight glass
Plastic (Polyamide PA)

Clear glass, ageing proof
Shock-resistant

Housing / Sight glass

Temperature resistant up to 100 °C
Oil and solvent proof
(not suitable for alcohol)

Pointer plastic, red

Scale aluminum

Matte anodized
Graduations black

Counter numbers white
Number wheels for integers black for decimals red

Protection class IP 65

Plastic Characteristics

IP Protection classes

RoHS

On request

Special scales

Information

Position indicators GN 000.13 have been shaped for installation into different operating elements.

The salient features of these counters are:
The housing, the hand spindle, and safety glass are produced from one single piece of material and ultrasonically welded to give a spray water proof and corrosion free unit (Protection class IP 65).

The installation principle with the forced drive allows the use of the positioning indicator GN 000.13 in any position even in case of strong vibration.

One complete revolution of the red pointer corresponds to one revolution of the spindle. This gives a very accurate reading and, combined with the digital indication from the counter, it is very simple to read.
