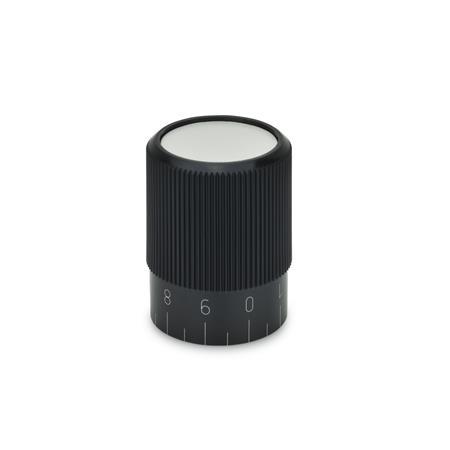

GN 626 Control Knobs, without bushing
ELESA original design IZP.
Type
| N | neutral |
| M | with arrow |
| S | with scale 0...9, 20 graduations |
| d1 f7 | d2 H8 Bore | d3 | d4 | d5 | d6 | l1 | l2 | l3 | t1 | t2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 27 | B 6 | 22 | 25 | 20,5 | M 4 | 30 | 12 | 18 | 24 | 12 |
| 32 | B 8 | 25 | 30 | 25 | M 4 | 38 | 13 | 23 | 30 | 13 |
| 35 | B 10 | 28 | 33 | 26,5 | M 5 | 45 | 15 | 27 | 37 | 15 |
| 40 | B 12 | 33 | 38 | 31 | M 5 | 52 | 16,5 | 32 | 44 | 16 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Arrow (Type M) and scale (Type S)
White, engraved with laser precision
Grub screw DIN 916
with internal hexagon and serrated point
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- Black, shiny finish
Arrow (Type M) and scale (Type S)
White, engraved with laser precision
Grub screw DIN 916
with internal hexagon and serrated point
RoHS
On request
Special graduations
see „How to Order Graduations“
see „How to Order Graduations“
Information
Besides the standard scale (Type S) the control knobs GN 626 can be supplied with any type of graduation.
Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale knobs on the order sheet „How to Order Graduations“
