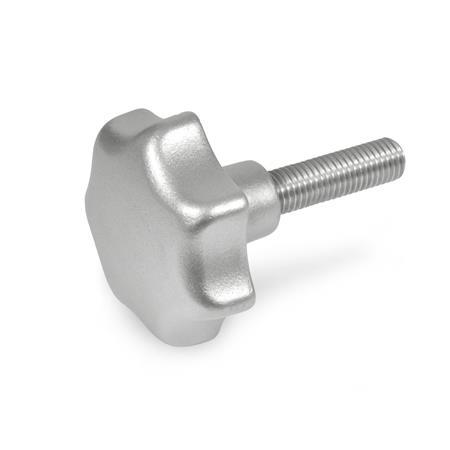

GN 6336.5 Stainless Steel Star Knobs
| d1 | d2 | Length l | d3 | h1 | h2 | ||||
|---|---|---|---|---|---|---|---|---|---|
| 40 | M 8 | 20 | 25 | 30 | 40 | - | 14 | 25 | 12 |
| 50 | M 10 | 20 | 25 | 30 | 45 | 55 | 18 | 32 | 15 |
| 63 | M 12 | 30 | 40 | 50 | - | - | 20 | 40 | 19 |
Filter combination produces no result.
Specification
Knob
Stainless steel precision castingES
AISI CF-8
Matte shot-blasted
Threaded stud
Stainless steel AISI 303
For all types the threaded stud is screwed in and secured by a cross-dowel
RoHS
Stainless steel precision castingES
AISI CF-8
Matte shot-blasted
Threaded stud
Stainless steel AISI 303
For all types the threaded stud is screwed in and secured by a cross-dowel
RoHS
Information
| How to order |
| ||||||||
GN 6336.5-ES-40-M8-20 |
