Steel, Blackened

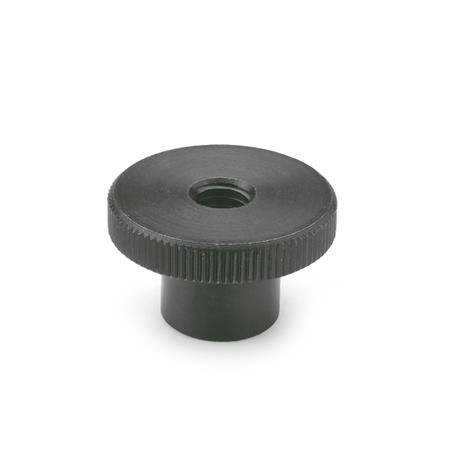

DIN 466 Knurled Nuts
| d1 | d2 | d3 | h | k |
|---|---|---|---|---|
| M 2 | 9 | 4,5 | 5,3 | 2 |
| M 2,5 | 11 | 5 | 6,5 | 2,5 |
| M 3 | 12 | 6 | 7,5 | 2,5 |
| M 4 | 16 | 8 | 9,5 | 3,5 |
| M 5 | 20 | 10 | 11,5 | 4 |
| M 6 | 24 | 12 | 15 | 5 |
| M 8 | 30 | 16 | 18 | 6 |
| M 10 | 36 | 20 | 23 | 8 |
| M 12 | 40 | 22 | 25 | 10 |
Filter combination produces no result.
Specification
Steel
RoHS
- Property class 5
- Visible face fine turned
- Blackened
RoHS
Information
Flat knurled nuts DIN 466 are suitable for universal use and can be tightened and loosened easily without tools. A nut with thread M12 is also available in addition to the types defined in the DIN standard.
| How to order |
| ||
DIN 466-M6 |
