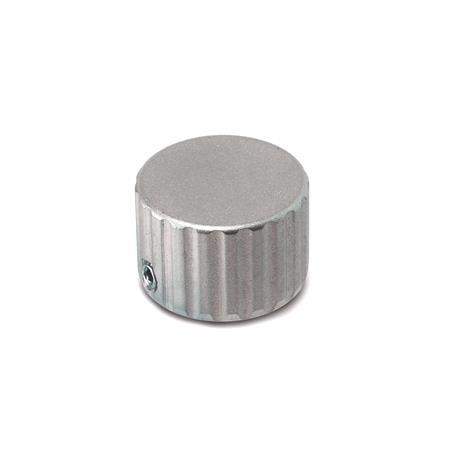

GN 436 Stainless Steel Control Knobs
Type
| N | Without indicator point |
| M | With indicator point |
| d1 | d2 H8 Bore | d3 | h | Length l | t min. | |
|---|---|---|---|---|---|---|
| 24 | B 5 | B 6 | M 4 | 16 | 4 | 10 |
| 28 | B 6 | B 8 | M 4 | 18 | 4 | 11 |
Filter combination produces no result.
Specification
Stainless steel
Indicator point (Type M)
Engraved with laser precision
Stainless steel grub screw DIN 916
with internal hexagon and serrated point
RoHS
- AISI 304
- Matte shot-blastedMT
Indicator point (Type M)
Engraved with laser precision
Stainless steel grub screw DIN 916
with internal hexagon and serrated point
RoHS
Information
| How to order |
| ||||||||
GN 436-24-B6-N-MT |
RoHS compliant:
-
-
Weight:
-
-
