Hygienic Design
GN 5445 Stainless Steel Three-Lobed Knobs
| d1 | d2 | d3 | d4 | h1 | h2 | t min |
|---|---|---|---|---|---|---|
| 40 | M 6 | 18 | 18,8 | 26 | 15 | 12 |
| 40 | M 8 | 18 | 18,8 | 26 | 15 | 15 |
| 50 | M 8 | 21 | 21,8 | 30 | 17 | 15 |
| 50 | M 10 | 21 | 21,8 | 30 | 17 | 18 |
Filter combination produces no result.
Specification
Stainless steel AISI 316L
Sealing ring
RoHS
- Matte finish (Ra < 0.8 µm)MT
- Polished finish (Ra < 0.8 μm)PL
Sealing ring
- H-NBRH
Temperature resistant -25 °C to + 150 °C - EPDME
Temperature resistant -40 °C to + 120 °C - Blue
- Hardness 85±5 Shore A
- FDA compliant
RoHS
Information

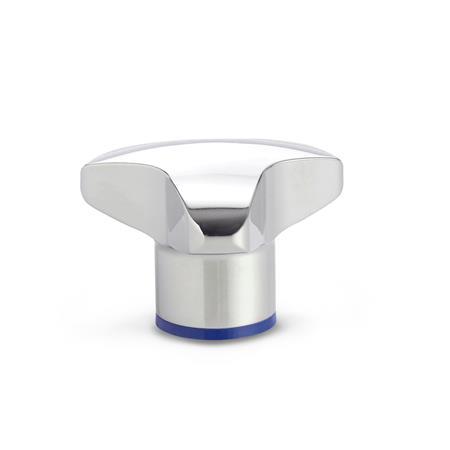

Stainless steel three-lobed knobs GN 5445 are intended for use in hygiene areas. The sealed mounting surface enables fastening without dead spaces. The high quality finish as well as the large corner radii and closed surfaces prevent adherence of dirt and facilitate cleaning.
see also...
| How to order |
| ||||||||
DIN 5445-40-M8-PL-H |
