Accessories for Scaling Sets

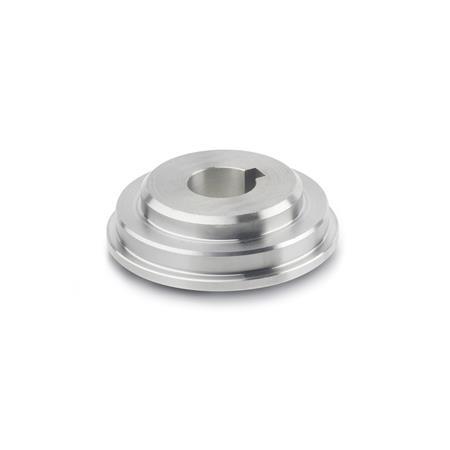

GN 268 Collar Bushings
| d1 f7 | d2 H7 Bore with keyway K | d3 | d4 | l1 | l2 | Scaling set consits of: 2 Collar bushes 1 Scale ring | 3 Flat springs | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 24 | K 12 | - | - | - | 26,7 | 18 | 13,5 | 5,5 | GN 264-30 | GN 374-0,3-10 |
| 32 | K 12 | K 14 | K 16 | - | 35,7 | 25 | 13,5 | 5,5 | GN 264-40 | GN 374-0,4-10 |
| 50 | K 12 | K 16 | K 20 | K 28 | 54,7 | 38 | 14,5 | 5,5 | GN 264-60 | GN 374-0,6-10 |
| 68 | K 12 | K 14 | K 16 | K 22 | 74,7 | 50 | 14,5 | 5,5 | GN 264-80 | GN 374-0,8-10 |
Filter combination produces no result.
Specification
Information
| How to order |
| ||||
GN 268-32-K16 |
