Plastic, Bushing Brass

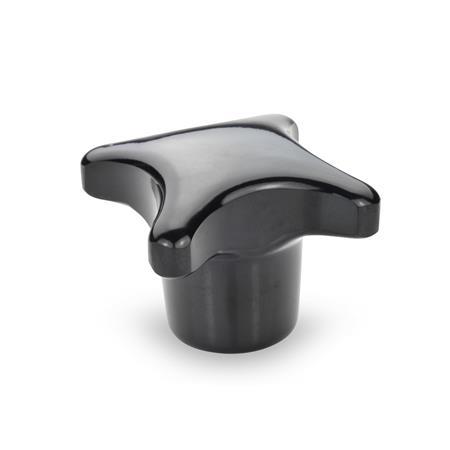

DIN 6335 Hand Knobs
Type

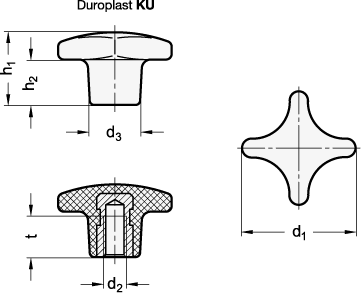

| K | With threaded bushing |
| d1 | d2 | d3 | h1 | h2 | t min. |
|---|---|---|---|---|---|
| 20 | M 4 | 10 | 13 | 6 | 7 |
| 25 | M 5 | 13 | 17 | 8 | 9,5 |
| 32 | M 6 | 14 | 20 | 10 | 12 |
| 40 | M 8 | 18 | 25 | 13 | 14 |
| 50 | M 10 | 22 | 32 | 20 | 18 |
| 63 | M 12 | 26 | 40 | 25 | 22 |
| 80 | M 16 | 35 | 50 | 30 | 30 |
Filter combination produces no result.
Specification
PlasticKU
Duroplast (PF)
Black, shiny finish
Bushing
BrassMS
RoHS
Duroplast (PF)
Black, shiny finish
Bushing
BrassMS
RoHS
Information
| How to order |
| ||||||||||
DIN 6335-KU-50-M10-K-MS |
RoHS compliant:
-
-
Weight:
-
-
PDF not available
