Plastic

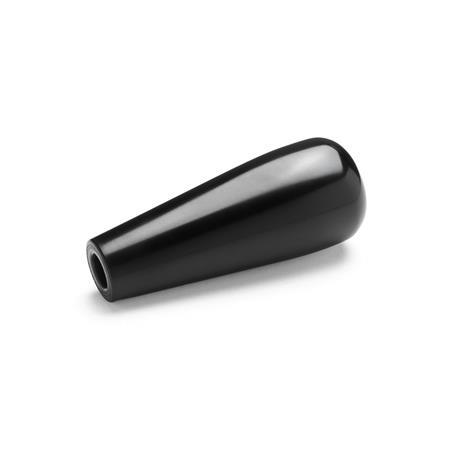

GN 219 Tapered Knobs
ELESA original design I.149
| d1 | d2 | l1 | d3 | l2 min. | l3 ±0,5 | l4 ≈ |
|---|---|---|---|---|---|---|
| 34 | M 10 | 67 | 19 | 40 | 8 | 24 |
| 34 | M 10 | 86 | 20 | 48 | 7 | 25 |
Filter combination produces no result.
Specification
Plastic
Duroplast (Phenolic PF)
RoHS
Duroplast (Phenolic PF)
- Temperature resistant up to 110 °C
- Black, shiny finish
RoHS
Information
When using the tapered knobs GN 219, make sure that the threaded pin is sufficiently long. Otherwise the plastic element may break under excessive stress exposure.
| How to order |
| ||||||
GN 219-34-M10-67 |
