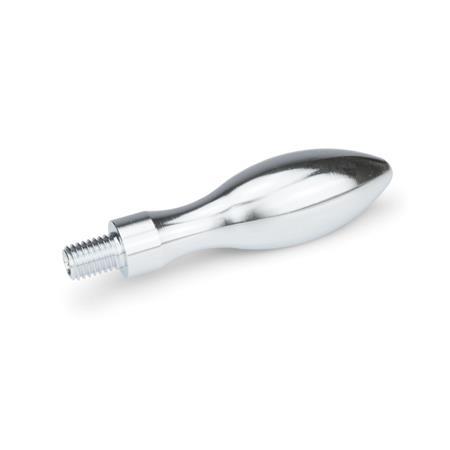

DIN 39 Fixed Handles, Steel, zinc plated / plastic

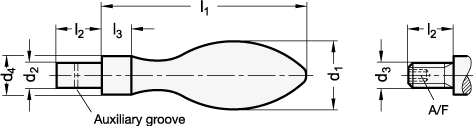

Type
| D | With plain shaft |
| E | With threaded rod |
| d1 | d2 h8 Type D ST | d3 Type E ST | KT | d4 h13 | l1 ≈ | l2 | l3 | A/F Internal hexagon |
|---|---|---|---|---|---|---|---|---|
| 16 | 7 | M 6 | - | 10 | 50 | 11 | 7 | 3 |
| 20 | 8 | M 8 | M 8 | 13 | 64 | 13 | 8 | 4 |
| 25 | 10 | M 10 | M 10 | 16 | 80 | 14 | 10 | 5 |
| 32 | 13 | M 12 | M 12 | 20 | 100 | 21 | 13 | 6 |
| 36 | 16 | M 16 | - | 22 | 112 | 26 | 14 | 8 |
Filter combination produces no result.
Specification
SteelST
Zinc plated, blue passivated
PlasticKT
Technopolymer (Polyamide PA)
RoHS
Zinc plated, blue passivated
PlasticKT
Technopolymer (Polyamide PA)
- Temperature resistant up to 100 °C
- Black, matte finish
- Threaded stud
Steel, blackened
RoHS
Information
On the official DIN standard sheet you can find the additional sizes 10 and 13.
| How to order |
| ||||||
DIN 39-ST-25-E |
