Steel, Blackened

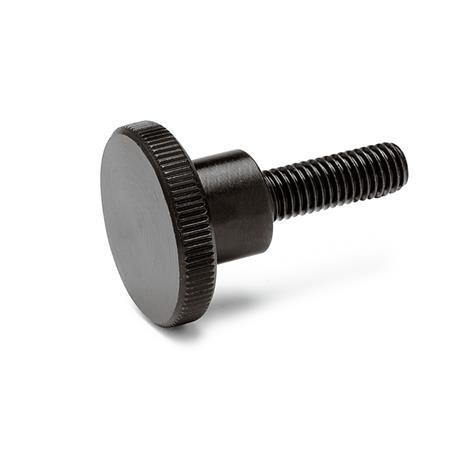

DIN 464 Knurled Screws

Product details
Order / Request
CAD data

Show filter

d₁	Length l								d₂	d₃	h	k

M 2	4	6	8	10	-	-	-	-	9	4,5	5,3	2
M 2,5	4	6	8	10	12	-	-	-	11	5	6,5	2,5
M 3	6	8	10	12	16	20	-	-	12	6	7,5	2,5
M 4	5	8	10	12	16	20	25	-	16	8	9,5	3,5
M 5	6	8	10	12	16	20	25	30	20	10	11,5	4
M 6	8	10	12	16	20	25	30	35	24	12	15	5
M 8	12	16	20	25	30	35	40	-	30	16	18	6
M 10	12	15	20	25	30	35	40	-	36	20	23	8

Filter combination produces no result.

Specification

Steel

Property class 5
Visible face fine turned
Blackened

Strength Values of Screws

Loss protections GN 111.7

RoHS

Information

Knurled screws DIN 464 are turned entirely from a single piece. The thread of the screw generally extends up to the shoulder and ends in a runout without recess.

They are suitable for universal use and can be quickly tightened and loosened without tools.
