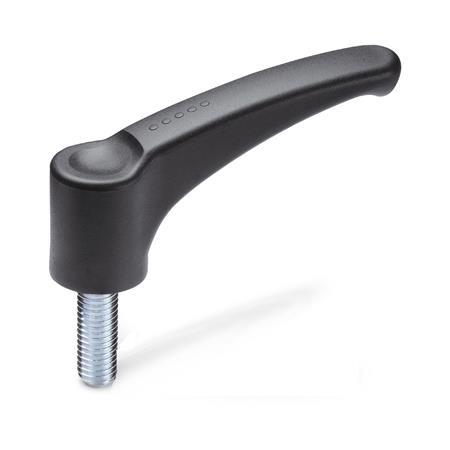

GN 601 Clamping Levers, with threaded stud, steel, zinc plated
ELESA original design ERF.p
| l1 | d1 | l2 | d3 | h1 | h2 | h3 |
|---|---|---|---|---|---|---|
| 44 | M 6 | 16 | 15,5 | 19 | 26,5 | 19 |
| 63 | M 8 | 25 | 19 | 24,5 | 35 | 26,5 |
| 78 | M 10 | 30 | 23 | 29,5 | 42 | 32 |
| 95 | M 12 | 50 | 26,5 | 34 | 51,5 | 40 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Threaded stud
Steel
Zinc plated, blue passivated
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- Black-gray RAL 7021, matte
Threaded stud
Steel
Zinc plated, blue passivated
RoHS
Information
Design and handling of the clamping levers GN 601 comply with the requirements and claims of the Ergostyle® product family.
see also...
| How to order |
| ||||||
GN 601-63-M8-25 |
RoHS compliant:
-
-
Weight:
-
-
