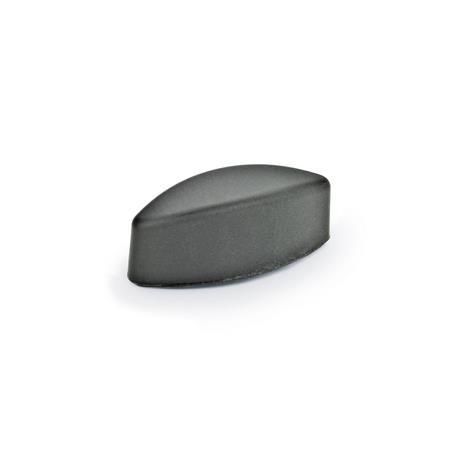

GN 532 Wing Nuts, plastic, bushing in brass
ELESA original design CT.476 / CT.476 FP
Type
| E | With threaded blind bore |
| D | With threaded through bore |
| d1 | d2 Type E | d3 Type D | d4 | b | h | t1 min. | t2 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | M 4 | - | - | - | - | - | - | 9,5 | 11 | 6 | - |
| 26 | M 5 | M 6 | - | - | - | - | - | 11 | 13 | 6 | - |
| 32 | M 5 | M 6 | M 8 | M 5 | M 6 | - | 6,5 | 13 | 15 | 6 | 12 |
| 40 | M 5 | M 6 | M 8 | M 5 | M 6 | M 8 | 9 | 15,5 | 17 | 6 | 12 |
| 48 | M 8 | - | - | M 8 | - | - | 9 | 19 | 19 | 10 | 16 |
| 56 | M 10 | - | - | M 10 | - | - | 11 | 21 | 23 | 13 | 20 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Bushing
Brass
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- Black, matte finish
Bushing
Brass
RoHS
Information
| How to order |
| ||||||
GN 532-40-M8-E |
RoHS compliant:
-
-
Weight:
-
-
