Plastic, Cover Cap Black

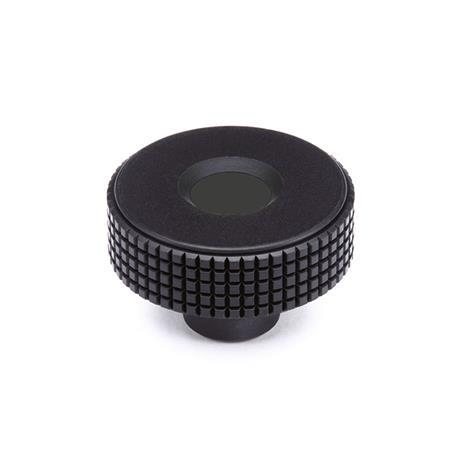

GN 534 Knurled Knobs , bushing brass
ELESA original design MBT.
| d1 Nominal dimension | Actual dimension | d2 Thread | d3 H9 Bore | d4 | h1 | h2 | t1 min. | t2 min. |
|---|---|---|---|---|---|---|---|---|
| 32 | 31 | M 5 | - | 15 | 24 | 11,5 | 10 | - |
| 32 | 31 | M 6 | - | 15 | 24 | 11,5 | 12 | - |
| 40 | 39,5 | M 6 | B 6 | 17 | 26,5 | 12,5 | 12 | 14 |
| 40 | 39,5 | M 8 | - | 17 | 26,5 | 12,5 | 13 | - |
| 50 | 50 | M 8 | B 8 | 20 | 33 | 16 | 20 | 20 |
| 50 | 50 | M 10 | - | 20 | 33 | 16 | 18 | - |
| 60 | 61 | M 10 | B 10 | 23 | 39 | 18,5 | 20 | 25 |
| 60 | 61 | M 12 | - | 23 | 39 | 18,5 | 20 | - |
| 70 | 70 | M 12 | - | 24 | 42 | 20,5 | 20 | - |
| 70 | 70 | M 14 | - | 24 | 42 | 20,5 | 20 | - |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polypropylene PP)
Bushing
Brass
Color of the cover cap
Black, RAL 9005, matte finish
RoHS
Technopolymer (Polypropylene PP)
- Reinforced, shock-resistant
- Temperature resistant up to 90 °C
- Black, RAL 9005, matte finishSW
Bushing
Brass
Color of the cover cap
Black, RAL 9005, matte finish
RoHS
Information
The unique profile on the rim (small squares) of the knurled knobs GN 534 is characteristic of its form and the function.
| How to order |
| ||||||
GN 534-40-M8-SW |
