Duroplast

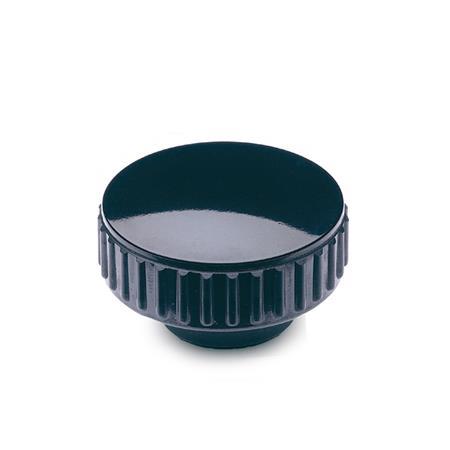

GN 530.5 Knurled Nuts, bushing Stainless Steel
ELESA original design B.193-SST
| d1 | d2 | d3 | h | k | t min. |
|---|---|---|---|---|---|
| 15 | M 5 | 11 | 11 | 9 | 6 |
| 22 | M 6 | 15 | 14 | 10 | 6 |
| 25 | M 6 | 19 | 18 | 12 | 10 |
| 30 | M 8 | 24 | 18 | 12 | 10 |
Filter combination produces no result.
Specification
Plastic
Duroplast (PF)
Bushing
Stainless steel AISI 303
RoHS
Duroplast (PF)
- Temperature resistant up to 110 °C
- Black, shiny finish
Bushing
Stainless steel AISI 303
RoHS
Information
The surface quality of the knurled nuts GN 530.5 is of a sufficiently high standard to meet the highest requirements. The flash mark is not visible.
Duroplast material is highly resistant to chemicals.
| How to order |
| ||||
GN 530.5-22-M6 |
