GN 481 Edge Handles, Aluminium-tube

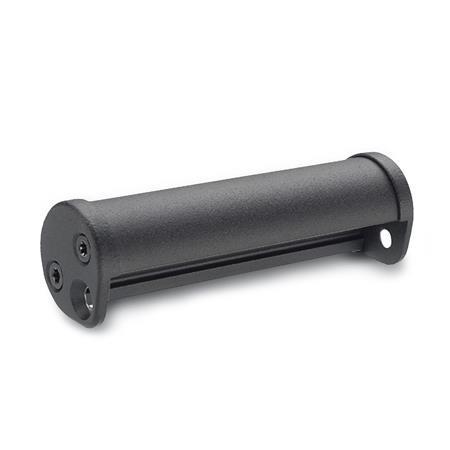

Edge Handles Aluminium tube GN 481 thumbnail

Edge Handles Aluminium tube GN 481 sketch

Show filter

d₁ -0,5	l₁	a₁	a₂	d₂	h₁	h₂ -0,1	l₂

30	100	18	9	32	34,5	14,5	106
30	200	18	9	32	34,5	14,5	206
30	300	18	9	32	34,5	14,5	306
30	400	18	9	32	34,5	14,5	406
30	500	18	9	32	34,5	14,5	506

Filter combination produces no result.

Specification

Handle profile
Aluminum

Black, RAL 9005, textured finishSW
Anodized, natural colorEL

End pieces
Zinc die casting
Powder coated
Black, RAL 9005, textured finish

Countersunk screws

Self tapping, with internal hexalobular
Black, zinc plated

RoHS

On request

Other lengths l₁

Other finishes

Information

Edge handles GN 481 are particularly compact and are used, for example, on the side of monitor housings as a handling aid or generally to protect the edges of housings.

Tolerance compensation of 1 mm per end piece simplifies installation. The two end pieces are mounted to the handle profile with self-tapping countersunk screws so they can be screwed back on after adjusting the length of the handle without requiring readjustment. This allows the length of the housing to be adapted to any desired size.
