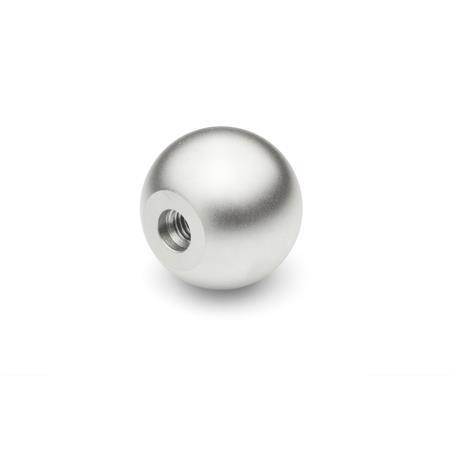

DIN 319 Stainless Steel Ball Knobs

C	With thread
K	With Plain Hole H7

Show filter

d₁	d₂ Type C Thread	d₃ H7 Type K Bore	d₄ ≈	h ≈	t₁ min.	t₂ min.

16	M 4	B 6	8	15	7	9
20	M 5	B 8	12	18	9	11
25	M 6	B 10	15	22,5	11	14
32	M 8	B 12	18	29	14,5	17
40	M 10	B 16	22	37	18	22
50	-	B 20	27	46	21	28

Filter combination produces no result.

Specification

Stainless steelNI AISI 303
Matte shot-blasted

RoHS

Stainless steel ball knobs DIN 319 are not on the official DIN standard sheet.

How to order

DIN 319-NI-40-M10-C

RoHS compliant: Info

Weight:
