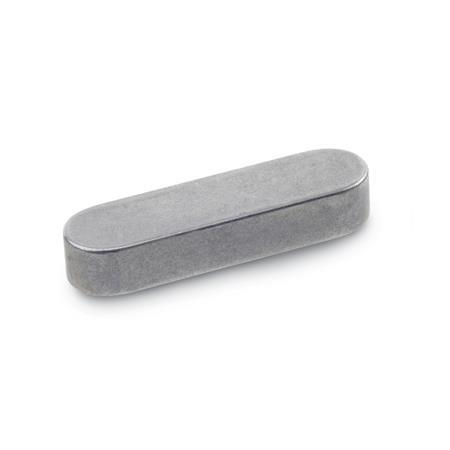

DIN 6885 Stainless Steel Parallel Keys
Type
| A | front rounded, high type |
| b h9 | h | Length l | for shaft-Ø from to | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 3 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | - | - | - | - | - | - | 8...10 |
| 4 | 4 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 32 | - | - | - | - | 10...12 |
| 5 | 5 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 32 | 36 | 40 | 45 | 50 | 12...17 |
| 6 | 6 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 32 | 36 | 40 | 45 | 50 | 56 | 63 | 17...22 |
| 8 | 7 | 16 | 18 | 20 | 22 | 24 | 25 | 28 | 32 | 36 | 40 | 45 | 50 | 56 | 63 | 22...30 |
| 10 | 8 | 20 | 22 | 25 | 28 | 32 | 36 | 40 | 45 | 50 | 56 | 63 | 70 | 80 | 90 | 30...38 |
| 12* | 8 | 25 | 28 | 32 | 36 | 40 | 45 | 50 | 56 | 63 | 70 | 80 | 90 | 100 | - | 38...44 |
Filter combination produces no result.
** not available from stock, requires a minimum order quantity
Specification
On request
b = 14, 16, 18, 20
Information
Stainless steel parallel keys DIN 6885 are only in packing units of 10 pieces for each size and length available.
see also...
| How to order |
| ||||||||||
DIN 6885-10-8-36-A-NI |
