Bushing Stainless Steel

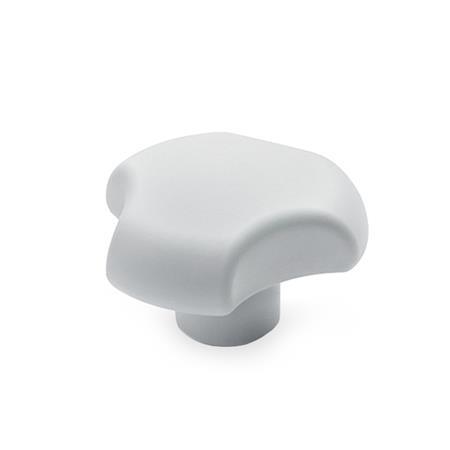

GN 5342 Three-Lobed Knobs
ELESA original design VTT-SST-CLEAN
| d1 | d2 | d3 | h1 | h2 | t ≈ |
|---|---|---|---|---|---|
| 25 | M 5 | 12 | 20 | 10 | 10 |
| 32 | M 6 | 14 | 23 | 11,5 | 10 |
| 40 | M 8 | 16 | 27 | 13,5 | 13 |
| 50 | M 10 | 19 | 30 | 15 | 17 |
| 60 | M 12 | 22,5 | 34 | 18 | 20 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Bushing
Stainless steel AISI 304
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- White, RAL 9002, matte finishWS
Bushing
Stainless steel AISI 304
RoHS
On request
With bushing brass
Information
The underside of the three-lobed knobs GN 5342 is not recessed, which meets the requirements of a "hygienic" version.
| How to order |
| ||||||
GN 5342-40-M8-WS |
RoHS compliant:
-
-
Weight:
-
-
