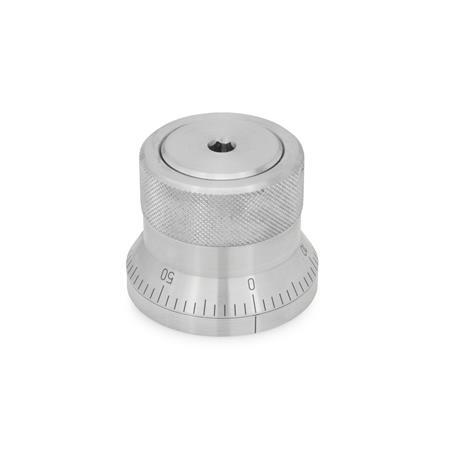

GN 200 Stainless Steel Indexing Mechanisms
Type
| A | Without scale |
| AS | With scale 0...50, 60 graduations |
| d1 | d2 H7 Bore with keyway K | d3 | d5 | d6 P.C.D. Ø for fixing screws | l1 | l2 | l3 Bore length | w Stroke | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 44 | K 10 | K 12 | - | 33 | 23 | 33 | 37 | 6 | 31 | 4 |
| 52 | K 12 | K 14 | K 16 | 42 | 31,5 | 41,8 | 37,5 | 6 | 31,5 | 4 |
Filter combination produces no result.
Specification
Stainless steelNI AISI 303
Type AS:
Keyway P9 DIN 6885/1
for bore K 10
Keyway P9 DIN 6885/2
for bores > K 10
Keyway P9 DIN 6885 Page 1
Keyway P9 DIN 6885 Page 2
ISO Fundamental Tolerances
Stainless Steel Characteristics
RoHS
Type AS:
- Scale engraved with laser precision
- Reference line on location ring
Keyway P9 DIN 6885/1
for bore K 10
Keyway P9 DIN 6885/2
for bores > K 10
Keyway P9 DIN 6885 Page 1
Keyway P9 DIN 6885 Page 2
ISO Fundamental Tolerances
Stainless Steel Characteristics
RoHS
On request
Special graduations
see „How to Order Graduations“
see „How to Order Graduations“
Information
Stainless steel indexing mechanisms GN 200 replace and simplify complicated indexing and safety mechanisms.
Besides the standard scale (Type AS) the control knob version may be supplied with any scale.
Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale rings on the order sheet „How to Order Graduations“.
| How to order |
| ||||||||
GN 200-52-K12-AS-NI |
