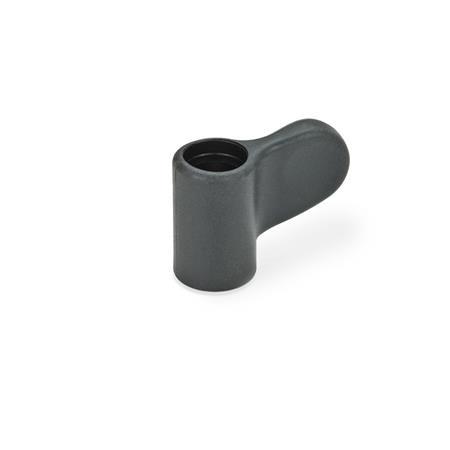

GN 635 Wing Nuts without Cover Cap
ELESA original design ESN.
Type
| D | With threaded through bore |
| r | d1 | d2 | d3 | d4 | b | h1 | h2 | h3 | h4 | |
|---|---|---|---|---|---|---|---|---|---|---|
| 27,5 | M 6 | M 8 | 16 | 10,5 | 12 | 8 | 28 | 6,5 | 18 | 25 |
| 35 | M 8 | M 10 | 20 | 13 | 15 | 10 | 36 | 8 | 20 | 32 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Bushing
Brass
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- Black-gray, similar RAL 7021, matte
Bushing
Brass
RoHS
Information
Design and handling of the wing nuts GN 635 comply with the requirements and claims of the Ergostyle® product family.
