with Mounting Holes Ø 3.3

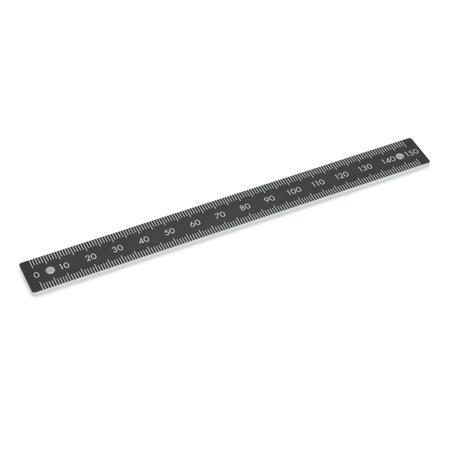

GN 711.2 Rulers, Aluminium

Identification no.

1	With mounting holes Ø 3,3

Type

W	Figures horizontally arranged (figures sequences L, M, R)
S	Figures vertically arranged (figures sequences U, M, O)

Show filter

Length l (Scale)	Number of bores	a₁ ±0,1 Figure sequence M	a₂ ±0,1 Figure sequence M	a₃ ±0,1 Figure sequence M	a₄ Figure sequence M	a₅ ±0,1 Figure sequence M	a₆ ±0,1 Figure sequence M	a₇ ±0,1 Figure sequence M	a₈ ±0,1 Figure sequence M

50	2	4	54	-	-	-	-	-	-
100	2	9	99	-	-	-	-	-	-
150	2	4	154	-	-	-	-	-	-
200	3	9	99	199	-	-	-	-	-
300	3	9	149	299	-	-	-	-	-
400	4	9	139	269	399	-	-	-	-
500	4	9	169	339	499	-	-	-	-
750*	8	4	124	254	374	394	504	634	754
1000*	8	9	169	339	499	519	679	839	999

Filter combination produces no result.

Length l (Scale)	Number of bores	a₁ ±0,1 Figure sequence L / R / O / U	a₂ ±0,1 Figure sequence L / R / O / U	a₃ ±0,1 Figure sequence L / R / O / U	a₄ ±0,1 Figure sequence L / R / O / U	a₅ ±0,1 Figure sequence L / R / O / U	a₆ ±0,1 Figure sequence L / R / O / U	a₇ ±0,1 Figure sequence L / R / O / U	a₈ ±0,1 Figure sequence L / R / O / U

50	2	9	49	-	-	-	-	-	-
100	2	9	99	-	-	-	-	-	-
150	2	9	149	-	-	-	-	-	-
200	3	9	99	199	-	-	-	-	-
300	3	9	149	299	-	-	-	-	-
400	4	9	139	269	399	-	-	-	-
500	4	9	169	339	499	-	-	-	-
750*	8	9	129	249	369	389	509	629	749
1000*	8	9	169	329	499	519	679	839	999

Filter combination produces no result.

*These lengths consists of 2 parts.

Specification

AluminumAL

Natural color anodized
Black imprint with numbers and scale etched (i.e., aluminum colored)

Imprint resistant to weak acids and lye solutions, and against solvents in the event of brief contact

RoHS

On request

Self-adhesive version

Information

The position of linear actuator connectors can be easily read from GN 711.2 rulers. With GN 711.3 reference arrows, reference points can be marked on rulers or reference positions in machines.

Indicator arrows GN 711.3 for rulers are to be ordered separately.
