Steel, Zinc Plated

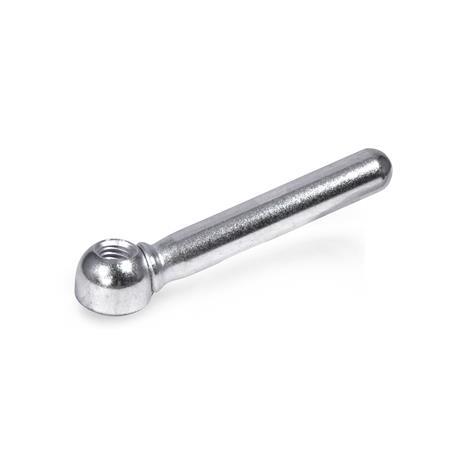

GN 99.5 Clamp Nuts
| l1 | d1 | d2 | d3 | h1 | h2 ≈ | l2 ≈ |
|---|---|---|---|---|---|---|
| 63 | M 8 | 16 | 10 | 12,5 | 30,5 | 60 |
| 80 | M 10 | 20 | 12 | 15 | 37 | 76 |
| 100 | M 12 | 25 | 14 | 19 | 46 | 95 |
| 125 | M 16 | 32 | 18 | 25 | 58,5 | 119 |
| 160 | M 20 | 40 | 20 | 31 | 73 | 152 |
Filter combination produces no result.
Specification
Steel
Zinc-plated, blue passivated
Shaft butt-welded
RoHS
Zinc-plated, blue passivated
Shaft butt-welded
RoHS
Information
| How to order |
| ||||
GN 99.5-100-M12 |
RoHS compliant:
-
-
Weight:
-
-
