with Rubber Pad

GN 31 Stainless Steel Leveling Feet

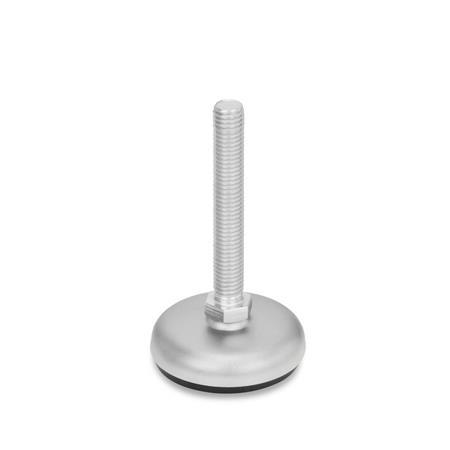

Stainless Steel Leveling Feet GN 31 thumbnail

Stainless Steel Leveling Feet GN 31 sketch

Type (Base)

B1	Matte shot-blasted, rubber inlayed, black
B2	Matte shot-blasted, rubber inlayed, white
B3*	Matte shot-blasted, rubber vulcanized, black
B4*	Matte shot-blasted, rubber vulcanized, white
C3*	Polished, rubber vulcanized, black
C4*	Polished, rubber vulcanized, white

Version (Screw)

S	Without nut, external hexagon at the bottom
SK	With nut, external hexagon at the bottom
T	Without nut, wrench flat at the bottom
TK	With nut, wrench flat at the bottom
U	Without nut, hexagon socket at the top and wrench flat at the bottom
UK	With nut, hexagon socket at the top and wrench flat at the bottom
V	Without nut, external hexagon at the top and wrench flat at the bottom
VK	With nut, external hexagon at the top and wrench flat at the bottom
W	With adjustable sleeve, covered thread, wrench flat at the bottom
X	External hexagon with internal thread

Show filter

d₁	d₂	l₁ Version S / SK				Version T / TK and U / UK						l₂ Version V / VK				l₃ +4 Version W				l₇ +4 Version X	h₁	h₂	s

50	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	37	14,5	3,5	3
50	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	40	14,5	3,5	3
50	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	43	14,5	3,5	3
50	M 16	-	-	-	-	75	100	125	150	200	250	-	-	-	-	-	-	-	-	49	14,5	3,5	3
60	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	38	16	4	3
60	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	41	16	4	3
60	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	45	16	4	3
60	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	123	148	173	198	50	16	4	3
80	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	40	18	5	3
80	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	43	18	5	3
80	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	47	18	5	3
80	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	125	150	175	200	52	18	5	3
80	M 20	-	-	-	-	75	100	125	150	200	250	100	125	150	200	149	174	199	249	60	18	5	3
80	M 24	-	-	-	-	100	125	150	200	300	-	100	150	200	-	174	224	274	-	-	18	5	3
100	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	42	20	6	3
100	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	45	20	6	3
100	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	49	20	6	3
100	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	126	151	176	201	54	20	6	3
100	M 20	-	-	-	-	75	100	125	150	200	250	100	125	150	200	151	176	201	251	62	20	6	3
100	M 24	-	-	-	-	100	125	150	200	300	-	100	150	200	-	176	226	276	-	-	20	6	3
120	M 20	-	-	-	-	100	125	150	200	250	-	-	-	-	-	-	-	-	-	65	22	6	4
120	M 24	-	-	-	-	100	125	150	200	300	-	-	-	-	-	-	-	-	-	-	22	6	4
120	M 30	-	-	-	-	100	125	150	200	300	-	-	-	-	-	-	-	-	-	-	22	6	4

Filter combination produces no result.

d₁	d₂	d₃	h₃ +4	h₄ +4	h₅ +4	l₄	l₅	l₆	sw₁	sw₂	sw₃	sw₄	sw₅	sw₆	A/F7	t

50	M 8	-	23	-	-	-	-	-	17	-	-	-	-	-	14	8
50	M 10	-	23	-	-	-	-	-	17	-	-	-	-	-	14	10
50	M 12	-	23	-	-	-	-	-	17	-	-	-	-	-	17	12
50	M 16	-	-	29	-	-	-	-	-	12	8	-	-	-	22	16
60	M 8	-	24	-	-	-	-	-	17	-	-	-	-	-	14	8
60	M 10	-	24	-	-	-	-	-	17	-	-	-	-	-	14	10
60	M 12	-	24	-	-	-	-	-	17	-	-	-	-	-	17	12
60	M 16	24	-	30	27	45	45	29	-	12	8	10	12	20	22	16
80	M 8	-	26	-	-	-	-	-	17	-	-	-	-	-	14	8
80	M 10	-	26	-	-	-	-	-	17	-	-	-	-	-	14	10
80	M 12	-	26	-	-	-	-	-	17	-	-	-	-	-	17	12
80	M 16	24	-	32	29	45	45	29	-	12	8	10	12	20	22	16
80	M 20	30	-	33	30	56	56	36	-	15	10	13	16	24	27	20
80	M 24	35	-	36	33	67	67	42	-	19	12	17	20	30	-	-
100	M 8	-	28	-	-	-	-	-	17	-	-	-	-	-	14	8
100	M 10	-	28	-	-	-	-	-	17	-	-	-	-	-	14	10
100	M 12	-	28	-	-	-	-	-	17	-	-	-	-	-	17	12
100	M 16	24	-	34	31	45	45	29	-	12	8	10	12	20	22	16
100	M 20	30	-	35	32	56	56	36	-	15	10	13	16	24	27	20
100	M 24	35	-	38	35	67	67	42	-	19	12	17	20	30	-	-
120	M 20	-	-	39	-	-	-	-	-	15	10	-	-	-	27	20
120	M 24	-	-	42	-	-	-	-	-	19	12	-	-	-	-	-
120	M 30	-	-	46	-	-	-	-	-	24	12	-	-	-	-	-

Filter combination produces no result.

* only available for the dimensions d₁ = 60, 80 and 100.

Specification

Base plate
Stainless steel AISI 304

Threaded stem
Stainless steel AISI 303

Hexagon nut ISO 4032
Stainless steel AISI 304

Rubber pad, inlaid

Black: NBR (Perbunan^®)
80±5 Shore A
White: TPE (Santoprene^®)
80±5 Shore A

Rubber pad, vulcanised
80±5 Shore A

Black: NBR (Perbunan^®)
White: NBR (Perbunan^®)

Load rating of Stainless Steel-Levelling feet GN 31 / GN 33

Stainless Steel Characteristics

Elastomer Characteristics

RoHS

Information

Stainless steel leveling feet GN 31 with vulcanised rubber (Type B3, B4, C3 and C4) and screw version W feature fewer dead spots owing to their construction method and are also easier to clean.

Stainless steel leveling feet GN 31 will be delivered mounted and are not removable.
