Low Type

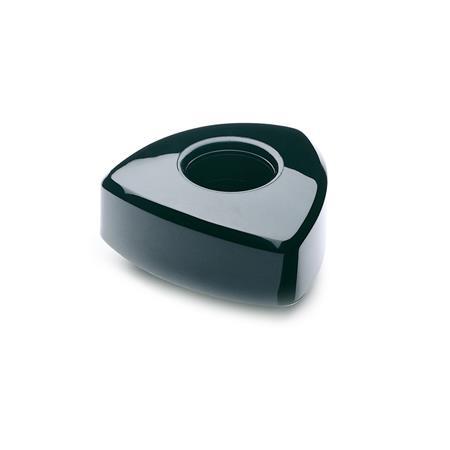

GN 5341 Triangular Knobs, with threaded bushing or square
ELESA original design VTR-FP / VTR-N
| d1 | d2 Thread | s H9 Square | d3 | d4 | h1 | h2 | t |
|---|---|---|---|---|---|---|---|
| 32 | M 5 | V 5 | 14 | 10 | 14 | 4 | 6 |
| 40 | M 6 | V 6 | 16 | 12 | 18 | 5 | 8 |
| 50 | M 8 | V 6 | 19 | 16 | 22 | 6 | 10 |
| 60 | M 10 | V 7 | 22 | 20 | 26 | 7 | 12 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Bushing
Brass
RoHS
Technopolymer (Polyamide PA)
- Temperature resistant up to 90 °C
- Black, shiny finish
Bushing
Brass
RoHS
Information
The use of shock proof technopolymer material for the triangular knobs GN 5341 eliminates the use of a metal bushing on the square knob.
| How to order |
| ||||
GN 5341-32-V5 |
RoHS compliant:
-
-
Weight:
-
-
