Plastic

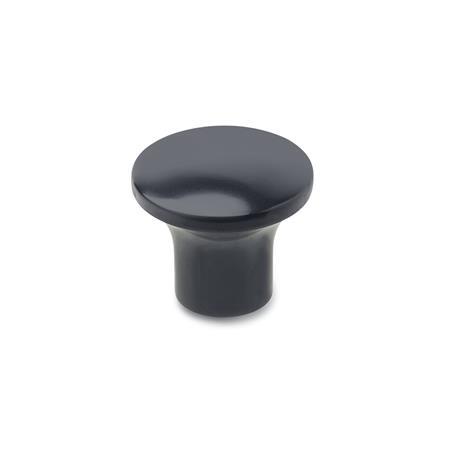

GN 76 Mushroom Type Knobs
Type
| D | With internal thread |
| E | With threaded stud |
| d1 | d2 Type D | d3 Type E | d4 | h | Length l | t min. |
|---|---|---|---|---|---|---|
| 17 | M 5 | M 5 | 10 | 14 | 9 | 7 |
| 21 | M 6 | M 6 | 12 | 17 | 10 | 11 |
| 25 | M 6 | M 6 | 14 | 21 | 10 | 11 |
| 33 | M 8 | M 8 | 18 | 29 | 14 | 12 |
Filter combination produces no result.
Specification
Plastic
Duroplast (Phenolic PF)
Type D
Threaded bushing
Brass
Type E
Threaded stud
Steel
Zinc plated, blue passivated
RoHS
Duroplast (Phenolic PF)
- Temperature resistant up to 110 °C
- Black, shiny finish
Type D
Threaded bushing
Brass
Type E
Threaded stud
Steel
Zinc plated, blue passivated
RoHS
Information
| How to order |
| ||||||
GN 76-25-M6-D |
