GN 333.1 Tubular Handles, Aluminium, zinc-die casting

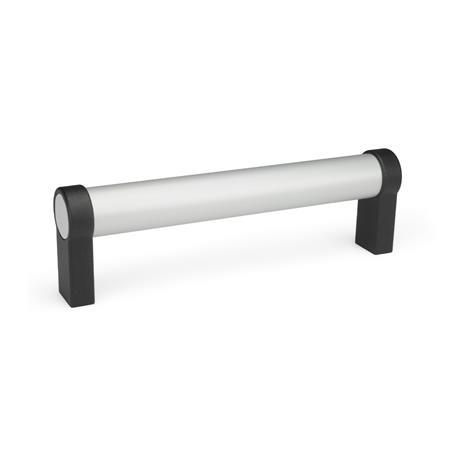

Tubular Handles Aluminium zinc die casting GN 333.1 thumbnail

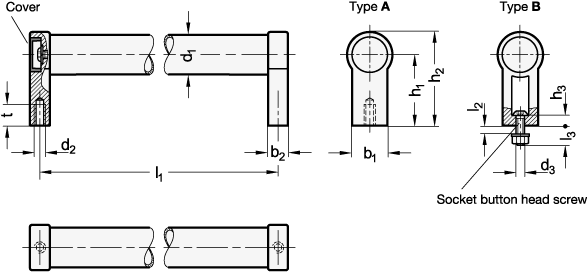

Tubular Handles Aluminium zinc die casting GN 333.1 sketch

Type

A	Mounting from the back (threaded blind bore)
B	Mounting from the operator's side (only for d°°1°° = 28)

Show filter

d₁	l₁ ±0,25							d₂	d₃	b₁	b₂	h₁	h₂	h₃	l₂ max.	l₃	t min.

20	180	200	250	300	350	400	-	M 6	-	24	12	42	54	-	-	-	12
28	200	250	300	350	400	500	600	M 8	M 6	25	14	50	66	7	6	13	15
30	200	300	350	400	500	600	1000	M 8	-	27	17	51	68	-	-	-	15

Filter combination produces no result.

Specification

Handle tube
Aluminum (wall thickness 1,5)

Handle legs
Zinc die casting

Tube
Powder coated
Black, RAL 9005, textured finishSW

Handle legs powder coated
Black RAL 9005, textured finish

Tube
Anodized, natural colorEL

Handle legs powder coated
Black RAL 9005, textured finish

Tube
Anodized, natural colorES

Handle legs powder coated
Silver RAL 9006, textured finish

Cover
Plastic, light gray

Type B

Socket button head screws ISO 7380-M6-20
Hexagon nuts ISO 4032-M6
Washers DIN 125

Steel, zinc plated, blue passivated

Load rating information

RoHS

Accessory

Handle legs GN 333.9

Information

The handle tube of the GN 333.1 tubular handles can be screwed to the handle bases without further machining or processing, allowing special lengths to be realised easily.

Further handle legs can be added for very long tubular handles. Individual handle legs for tubular handles Ø 28 (type A) are available under GN 333.9.

For type B, socket button head screws, hexagon nuts and washers are included parts of the order.
