Spindle Stainless Steel

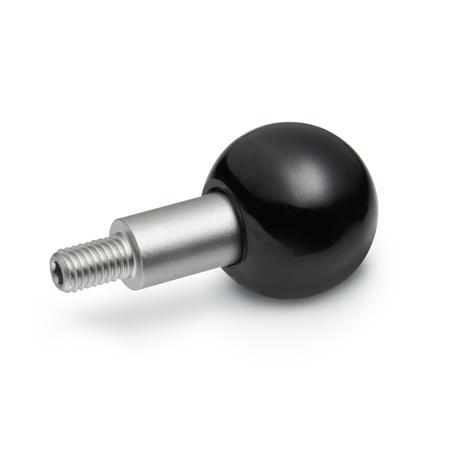

GN 319.5 Revolving Ball Knobs, plastic
Type
| A | With male thread |
| B | With female thread |
| d1 | d2 | d3 | l1 | l2 ±1 | l3 ±1 | A/F | t min. |
|---|---|---|---|---|---|---|---|
| 25 | M 6 | 10 | 11 | 37,5 | 15 | 8 | 10 |
| 32 | M 8 | 13 | 13 | 48 | 19 | 10 | 12 |
| 40 | M 10 | 16 | 14 | 61 | 24 | 14 | 16 |
| 50 | M 12 | 20 | 21 | 78 | 31 | 17 | 16 |
Filter combination produces no result.
Specification
Plastic
Duroplast (Phenolic PF)
Spindle
Stainless steel AISI 303
Matte shot-blasted
RoHS
Duroplast (Phenolic PF)
- Temperature resistant up to 110 °C
- Black, shiny finish
Spindle
Stainless steel AISI 303
Matte shot-blasted
RoHS
On request
With inch threads
Information
Revolving ball knobs GN 319.5 are in general used where a "pulling action" is involved such as on vertically positioned handwheels.
| How to order |
| ||||||
GN 319.5-32-M8-B |
