Plastic with Bushing in Brass

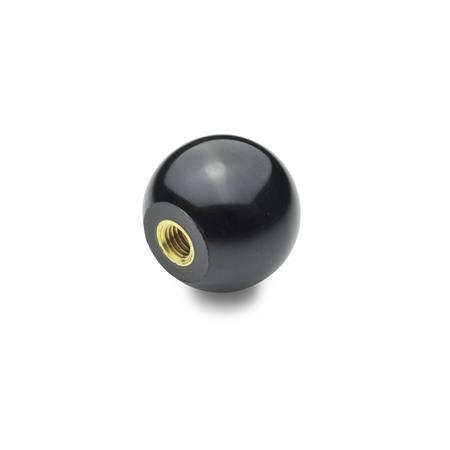

DIN 319 Ball Knobs
Type
| E | With tapped bushing |
| d1 | d3 | d4 ≈ | h ≈ | t2 min. |
|---|---|---|---|---|
| 16 | M 4 | 8 | 15 | 6 |
| 20 | M 5 | 12 | 18 | 7,5 |
| 25 | M 6 | 15 | 22,5 | 9 |
| 32 | M 8 | 18 | 29 | 12 |
| 40 | M 10 | 22 | 37 | 15 |
| 50 | M 12 | 28 | 46 | 18 |
Filter combination produces no result.
Specification
PlasticKU
Duroplast (Phenolic PF)
BrassMS
RoHS
Duroplast (Phenolic PF)
- Flash removed and polished
- Black (standard color)
BrassMS
RoHS
Information
| How to order |
| ||||||||||
DIN 319-KU-25-M6-E-MS |
