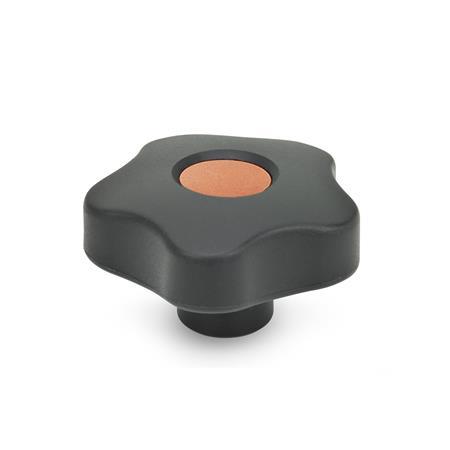

GN 5337.2 Star Knobs

ELESA original design VCT. Info

Type

E	With cover cap (threaded blind bore)

Show filter

d₁	d₂ Type E			d₅	d₆	h₁	h₂	t₁

32	M 5	M 6	M 8	15	10	23	10	12
40	M 6	M 8	-	17	13	27	12	18
40	M 10	-	-	17	13	27	12	17
50	M 8	M 10	M 12	19	15	32	14	20
63	M 8	M 10	M 12	22	19	37	16	26
74	M 12	M 14	-	26	17	43,5	22	26
74	M 16	-	-	26	17	43,5	22	31
84	M 12	M 16	-	28	22	44	21	25

Filter combination produces no result.

Specification

Plastic
Technoplymer (Polypropylen PP)

Reinforced, shock resistant
Temperature resistant up to 90 °C
Black, matte finish

Bushing brass

Color of the cover cap:
Orange, RAL 2004, matte finishDOR DOR

Gray, RAL 7035, matte finishDGR DGR

Yellow, RAL 1021, matte finishDGB DGB

Blue, RAL 5024, matte finishDBL DBL

Red, RAL 3000, matte finishDRT DRT

Green, RAL 6017, matte finishDGN DGN

Plastic Characteristics

ISO Fundamental Tolerances

Loss protections GN 111.7

RoHS

Information

Characteristic of the star knobs GN 5337.2 is the 5 lobes. They not only give the knobs a specific style but this shape has also enabled the operator to achieve a higher torque.
