for Position Indicator GN 000.9 / GN 000.13

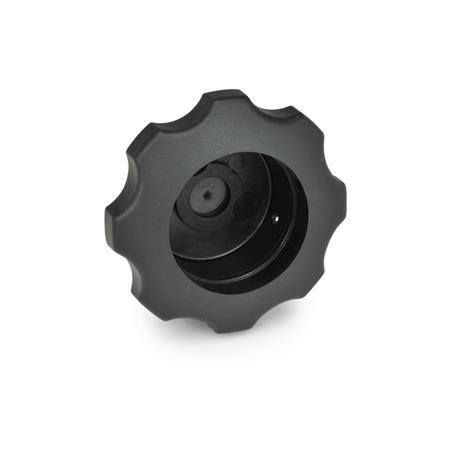

GN 577.9 Handwheels, plastic
ELESA original design VHT. PXX
| d1 | d2 H7 Bore | d3 | d4 | d5 -0,1 | a | b | l1 | l2 | l3 | l4 | l5 | for position indicators GN 000.9 Size | GN 000.13 Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 85 | B 10 | 18 | 58 | 6 | 19 | 18,5 | 20,5 | 55 | 5 | 10,5 | 14,5 | 42 | - |
| 110 | B 12 | 30 | 77 | 6 | 28,5 | 20 | 22 | 58 | 6 | 12 | 13 | 60 | 60 |
Filter combination produces no result.
Specification
Plastic
(Polyamide PA)
Bushing and pallet pin
Steel, blackened
Screw for pallet pin injected
Grub screw DIN 916
with internal hexagon and serrated point
RoHS
(Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 100 °C
- Black, matte finish
Bushing and pallet pin
Steel, blackened
Screw for pallet pin injected
Grub screw DIN 916
with internal hexagon and serrated point
RoHS
Accessory
Position indicators GN 000.9 / GN 000.13 are to be ordered separately.Information
Handwheels GN 577.9 have been designed for use together with position indicators GN 000.9 / GN 000.13 which are installed in the centre of the hub.
The pallet pin is screwed in position and secured with hexagon lock nut. The anchoring depth can still be adjusted to a certain degree.
On certain applications where these handwheels are used with or without a position indicator, a cover cap is available to shroud the empty recess in the knob if required.
see also...
| How to order |
| ||||
GN 577.9-85-B10 |
