Mounting from the Back

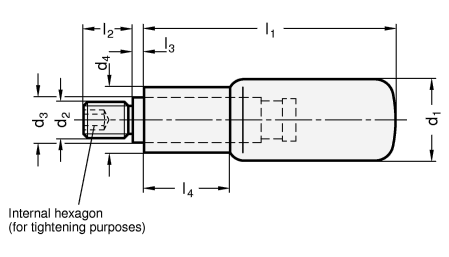

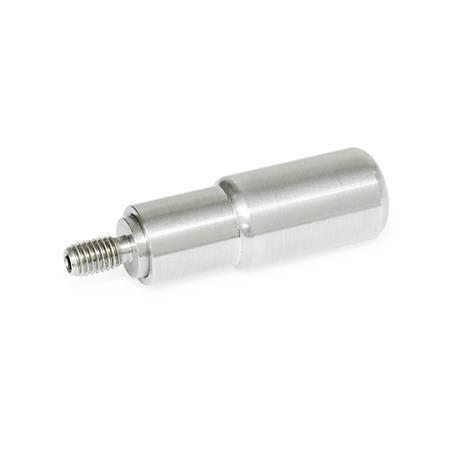

GN 798.1 Revolving Stainless Steel Handles
| d1 | d2 | d3 | d4 | l1 | l2 | l3 ≈ | l4 | |
|---|---|---|---|---|---|---|---|---|
| 18 | M 6 | M 8 | 10 | 14,5 | 56 | 13 | 2,5 | 19 |
| 22 | M 8 | M 10 | 14 | 18,5 | 59 | 14 | 2,5 | 21 |
| 24 | M 8 | M 10 | 14 | 18,5 | 74 | 16 | 2,5 | 27 |
Filter combination produces no result.
Specification
Stainless steelNI AISI 303
Fine turned, plain
Spindle
Stainless steel AISI 303
RoHS
Fine turned, plain
Spindle
Stainless steel AISI 303
RoHS
Information
Typical in design are the revolving stainless steel handles GN 798.1 with their stepped shape consisting of two cylinders giving the operator a better grip.
| How to order |
| ||||||
GN 798.1-NI-18-M6 |
