with Spherical Seating

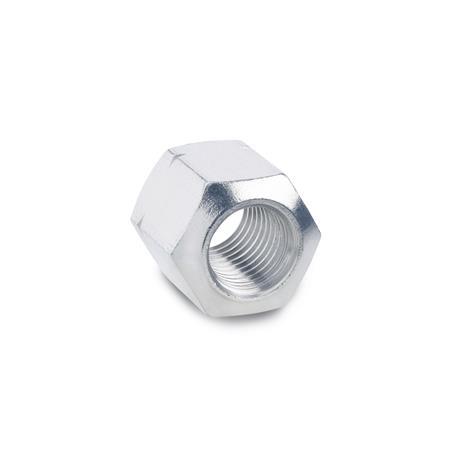

DIN 6330 Stainless Steel Hex Nuts
Type
| B | with one-sided spherical seating |
| d1 | d2 H14 | e min. | m | A/F | r |
|---|---|---|---|---|---|
| M 8 | 9 | 14,4 | 12 | 13 | 11 |
| M 10 | 11,5 | 17,8 | 15 | 16 | 15 |
| M 12 | 14 | 20 | 18 | 18 | 17 |
| M 14 | 16 | 24,6 | 21 | 22 | 20 |
| M 16 | 18 | 26,8 | 24 | 24 | 22 |
| M 20 | 22 | 33,5 | 30 | 30 | 27 |
Filter combination produces no result.
Specification
Information
Stainless steel hexagon nuts DIN 6330 are used for applications where constant removal and re-fitting is required (m = 1.5 x d1).
The spherical seating together with internal washers DIN 6319 allows excessive positional inaccuracies to be equalised.
The official standard sheet still specifies the additional sizes M 6, M 42 and M 48. But M 14 is not foreseen on the official standard sheet.
| How to order |
| ||||||
DIN 6330-M16-B-NI |
