Plastic

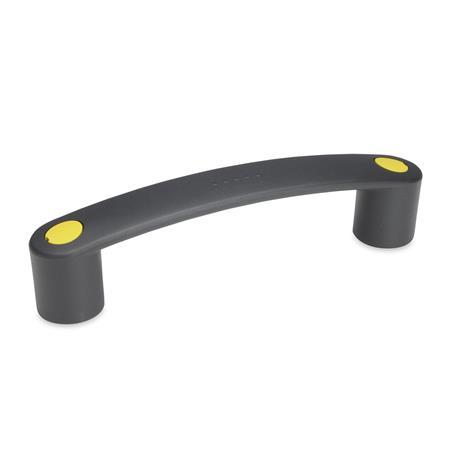

GN 628 Cabinet U-Handles, assembling from the back or operator's side
ELESA original design EBP.
Type
| A | Mounting from the back (threaded blind bore) |
| B | Mounting from the operator's side |

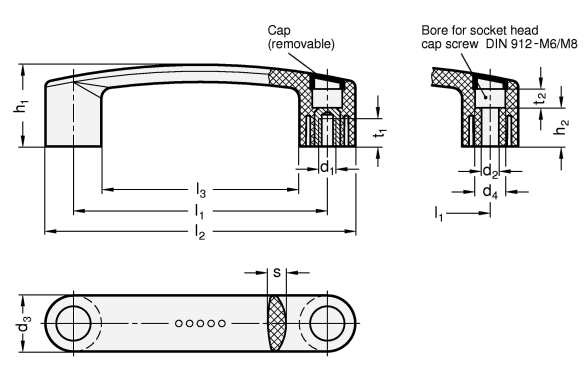

| l1 | d1 Type A | d2 Type B | d3 | h1 | h2 | l2 | l3 min. | s | A/F | t1 | t2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 94 -1 | M 5 | - | 22 | 35 | - | 116 | 72 | 7,5 | - | 10 | - |
| 94 -1 | M 6 | 6,5 | 22 | 35 | 17 | 116 | 72 | 7,5 | 10 | 12 | 6,5 |
| 117 ±0,5 | M 6 | 6,5 | 26 | 39 | 7 | 143 | 91 | 8,5 | 10 | 12 | 19,5 |
| 117 ±0,5 | M 8 | 8,5 | 26 | 39 | 18 | 143 | 91 | 8,5 | 13 | 13 | 8,5 |
| 120 ±0,5 | M 6 | 6,5 | 27 | 40,5 | 17,5 | 147 | 93 | 9,5 | 10 | 12 | 10,5 |
| 120 ±0,5 | M 8 | 8,5 | 27 | 40,5 | 17,5 | 147 | 93 | 9,5 | 13 | 13 | 10,5 |
| 132 ±0,5 | M 6 | - | 27 | 42 | - | 159 | 105 | 9,5 | - | 13 | - |
| 132 ±0,5 | M 8 | 8,5 | 27 | 42 | 17,5 | 159 | 105 | 9,5 | 13 | 13 | 10,5 |
| 150 ±1 | M 8 | 8,5 | 28 | 45 | 18 | 180 | 122 | 9,5 | 13 | 13 | 14 |
| 179 ±1 | M 8 | 8,5 | 29 | 51 | 19 | 208 | 150 | 9,5 | 13 | 13 | 16 |
| 179 ±1 | M 10 | - | 29 | 51 | - | 208 | 150 | 9,5 | - | 13 | - |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Threaded bushing (Type A)
Brass
Color of the cover cap:
Black-gray, RAL 7021, matte finishDSG
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
RoHS
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- Black-gray, matte
similar RAL 7021
Threaded bushing (Type A)
Brass
Color of the cover cap:
Black-gray, RAL 7021, matte finishDSG
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
RoHS
Information
The design of the cabinet U-handles GN 628 matches the Ergostyle® product family.
The caps for type A are supplied ready assembled, for type B they are enclosed loose.
The "hand space" can be enlarged with the distance bushings GN 628.2.
see also...
| How to order |
| ||||||||
GN 628-150-8,5-B-DSG |
