DIN 6320 Feet
| h | d1 | d2 | e min. | Length l | s |
|---|---|---|---|---|---|
| 10 | M 6 | 8 | 11,5 | 11 | 10 |
| 15 | M 8 | 10 | 15 | 13 | 13 |
| 20 | M 6 | 6 | 11,5 | 11 | 10 |
| 20 | M 10 | 13 | 19,6 | 16 | 17 |
| 25 | M 12 | 15 | 21,9 | 20 | 19 |
| 30 | M 8 | 9 | 15 | 13 | 13 |
| 40 | M 10 | 13 | 19,6 | 16 | 17 |
| 50 | M 12 | 15 | 21,9 | 20 | 19 |
Filter combination produces no result.
Specification
Steel (German Material No. 1.0718)
RoHS
- Not hardened
- blackened
RoHS
Information

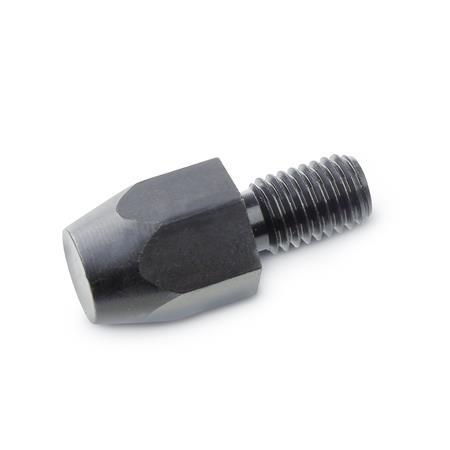

Feet DIN 6320 are normally used in jig construction if neither a self-aligning support nor an axial adjustment is required.
Unlike the models specified in the official standard sheet, these feet are made of 1.0718 steel.
| How to order |
| ||||
DIN 6320-20-M6 |
