Technopolymer

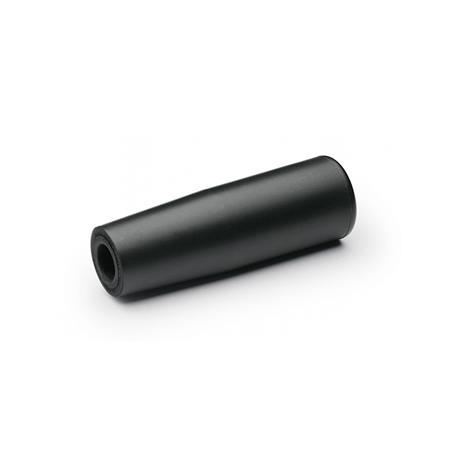

GN 519.2 Cylindrical Knobs
ELESA original design I.780

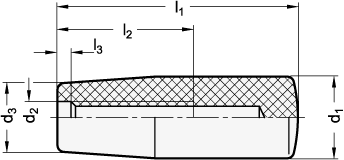

| d1 +0,5 | d2 Color SW | Color RT | d3 | l1 | l2 min. | l3 |
|---|---|---|---|---|---|---|
| 24 | M 8 | M 8 | 20,5 | 65 | 30 | 7 |
| 24 | M 10 | - | 20,5 | 65 | 40 | 7 |
| 26 | M 8 | - | 21 | 80 | 40 | 7 |
| 26 | M 10 | M 10 | 21 | 80 | 55 | 7 |
| 26 | M 12 | - | 21 | 80 | 55 | 7 |
| 28 | M 10 | - | 22,5 | 90 | 58 | 7 |
| 28 | M 12 | M 12 | 22,5 | 90 | 58 | 7 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
RoHS
Technopolymer (Polyamide PA)
- Temperature resistant up to 110 °C
- Color (matte finish)
Black, RAL 9005SW
Red, RAL 3000RT
RoHS
Information
Cylindrical knobs GN 519.2 are an advanced development of the Duroplast cylindrical knobs GN 519. Thanks to the polyamide material used in their manufacture, they feature superb mechanical properties.
| How to order |
| ||||||
GN 519.2-26-M10-RT |
RoHS compliant:
-
-
Weight:
-
-
PDF not available
